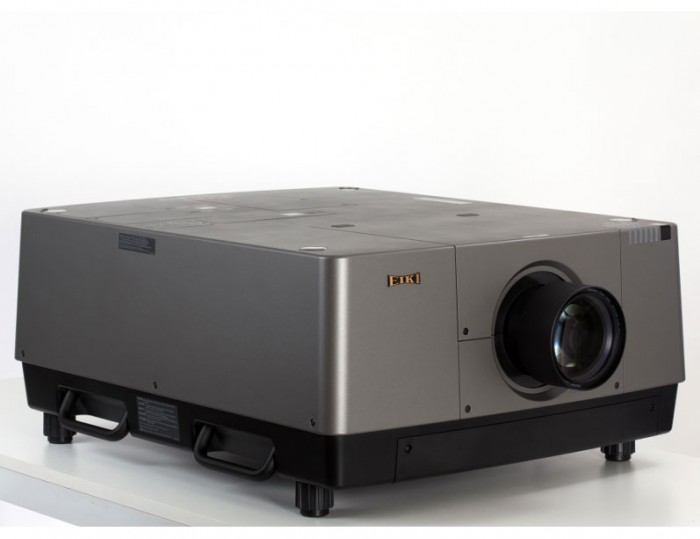

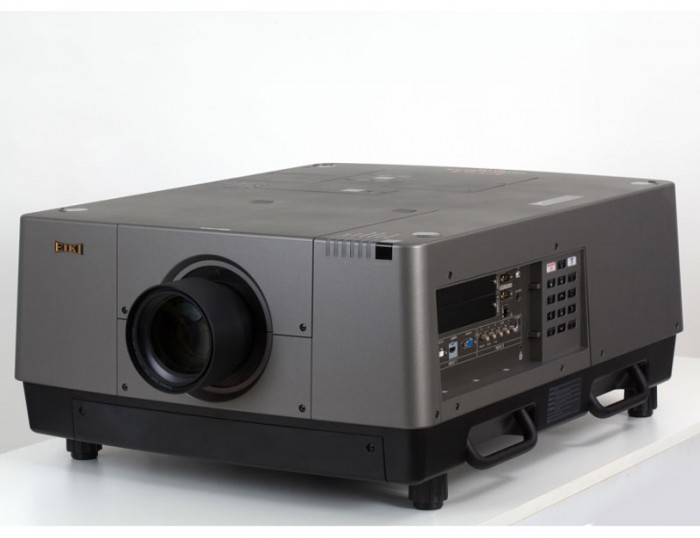

LC-XT6

16,000 ANSI lumens bright with 90% uniformity and a 2500:1 contrast ratio.

Native XGA resolution. Compatible with inputs up-to UXGA and WXGA.

Supports analog and digital video input in all color standards.

3LCD+One imaging system delivers more sophisticated color.

10-bit color processing, for superior color reproduction.

Supplied without lens. Range of power zoom and focus lenses available.

Bi-directional Vertical & Horizontal power lens shift, keystone and corner correction.

Accepts composite, component, and S-Video in all major standards.

Compatible with AMX Device Discovery System.

DVI-D (with HDCP) and HDMI® inputs support digital computer and video.

Built-in wired LAN connection for projector monitoring and control.

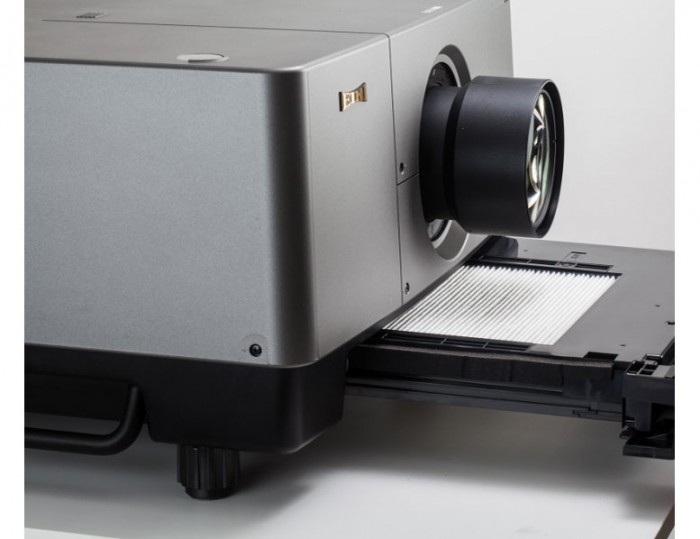

Pleated air filter (up to 5,000 hours). Optional smoke filter.

Edge Blending functions and color matching.

Mechanical shutter for true black screen. 2 and 4 lamp operation.

Four hot-swappable lamps. Half inch (1.2 cm) steel plate chassis.

Ανήκει στη σειρά: LCD Technology

Display Technology 3LCD+One

Brightness (ANSI) 16,000 lumens

Native Resolution XGA (1024×768)

Max. Computer Input WUXGA

Max. Video Input 1080i/p

Contrast Ratio 2500:1

Panel Size 1.8″(inorganic)

Lens (Throw:Width) Changeable – Does not come with Lens

Power Lens Shift U/D 50%; L/R 10%

Keystone Correction Digital: U/D up-to 40º; L/R up-to 40º

Inputs

Dsub15 x 1; DVI-D (w/ HDCP) x 1; HDMI x 1; BNC x 5; 3BNC; 1BNC; S-Video x 1;Empty module bay x 2; (requires 240 V/60 Hz power)

Network Control

Wired LAN monitor & control & system management with optional module

Fan Noise As low as 48 dBA

Air Filter up-to 5,000 hours

Maximum Pitch up-to 360°

Weight 102.5 lb (46.5 kg)
