LC-WBS500

5,100 ANSI lumens bright with 80% uniformity and a 4000:1 contrast ratio.

Native WXGA resolution. Compatible with inputs up-to UXGA and WUXGA.

Supports analog and digital video input in all color standards up-to 1080p.

HDMI Digital connectivity with HDCP compliance.

Convenient mid-range (1.65:1) manual zoom and focus lens.

Fixed image offset. Automatic vertical digital keystone correction.

Accepts composite, component, and S-Video in all major standards.

Displays both 4:3 and 16:9 aspect ratios. Supports most HDTV resolutions.

Built-in 10 Watt sound system. Closed Caption decoding (NTSC).

Wired network control. Optical zoom: 1.65X.

Side-accessed air filter & top accessed lamp for ease of maintenance.

Color board modes. Custom warm-up screen.

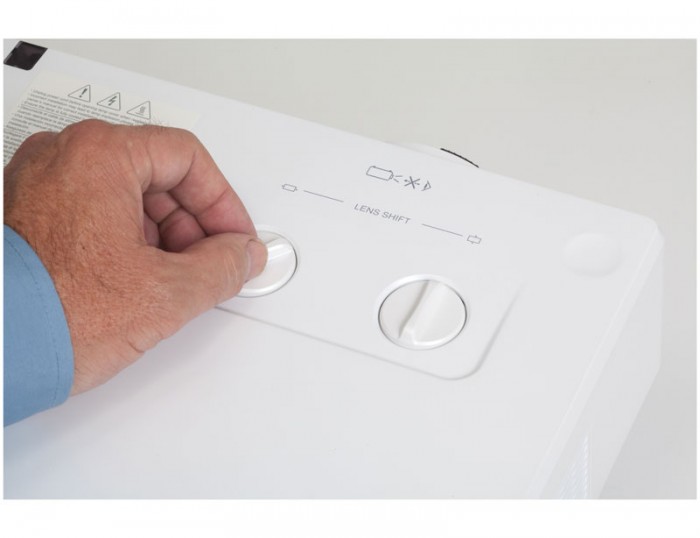

Built-in Image Warping. Manual Horiz.& Vert. lens shift.

Security bar. Kensington® MicroSaver® security slot. PIN lock.

Ανήκει στη σειρά: LCD Technology

Display Technology 3 LCD

Brightness (ANSI) up-to 5,100 ANSI Lumens

Native Resolution WXGA (1280×800)

Max. Computer Input UXGA/WUXGA

Max. Video Input 1080p

Contrast Ratio up-to 4000:1

Panel Size 0.59 in (15 mm)

Lens Type (Throw:Width) Attached – Manual Zoom and Focus

Anti Keystone Fixed Image Offset, Ratio (Top/Bottom) 6:1

Vert/Horiz Keystone Correction Digital: V: +/- 30° (Auto) H: +/- 15° (Manual) Corner Keystone

Inputs

DSub15 x 2; HDMI x 1; RCA x 1 or S-Video x 1; USB-Type A x 1; USB-Type B x 1 (display); RJ45 x 1; Dsub9 x 1; MiniStereo x 2; RCA (video audio) x 2

Outputs

Dsub15 x 1 (switchable Monitor Out); Variable, Stereo: MiniStereo x 1

Sound System 10 Watt; 1.4 in (3.7 cm) x 1 (Mono)

Network Control

Wired network control

Fan Noise 36 dBA normal / 32 dBA eco

Air Filter Filter & Frame Assy

Maximum Pitch Up-to 30° Up or Down

Weight 10.1 lb (4.6 kg)
