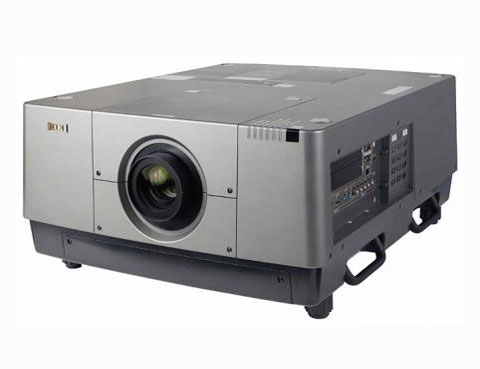

Logo_eiki-st.jpg LC-HDT2000


15,000 ANSI lumens bright with 90% uniformity and a 3000:1 contrast ratio.
Native 2K resolution. Compatible with inputs up-to UXGA and WUXGA.
Supports analog and digital video input in all color standards up-to 2K*.
3LCD+One imaging system delivers more sophisticated color.
10-bit color processing, for superior color reproduction.
Supplied without lens. Range of power zoom and focus lenses available.
Bi-directional Vertical & Horizontal power lens shift and keystone correction.
Accepts composite, component, and S-Video in all major standards.
DVI-D (with HDCP) and HDMI® inputs support digital computer and video.
Built-in wired LAN connection for projector monitoring and control.
Self-cleaning air filter reduces maintenance. Optional smoke filter.
Picture-in-Picture, Picture-by-Picture, and Edge Blending functions.
Mechanical shutter for true black screen. 2, 3, and 4 lamp operation.
Four hot-swappable lamps. Half inch (1.2 cm) steel plate chassis.

Ανήκει στη σειρά: LCD Technology

Connections - Auxilary Ports
Mouse, Wired RC, RS-232, Network interface
RS-232 Control Port Dsub9 x 2 (In & Out)
Network Interface Port RJ45 x 1
Service Port USB-B x 1
Wired RC Port MiniStereo x 1


Connections - Image Signal Inputs
1a. Computer Dsub15 x 1
1b. DVI-D (with HDCP) - DVI-D x 1
1c. HDMI 1.3 with Deep Color HDMI x 1
2a. Analog Video (RGBHV) - 5BNC; Component Video (Y, Pb/Cb, Pr/Cr) - 3BNC; Composite Video - 1BNC
2b. S-Video - S-Video x 1
3. Unpopulated Module Bay
4. Unpopulated Module Bay


Filters
Air Filter Self-Cleaning, Multi-Layer, up-to 13,500 Hours


Image Characteristics
Brightness up-to 15,000 ANSI Lumens (with AH-22051 lens)
Color Reproduction 10-bit (1.07 billion colors)
Contrast Ratio up-to 3000:1
Illumination Uniformity (corner to center) 90%
Imaging System 1.64 in (42 mm) Inorganic LCD Panels x 3 with proprietary Color Control Device
Scanning Frequency Auto: H: 15-120 kHz; V: 48-120 MHz
Resolution and Aspect Ratio 2K (2048 x 1080), approx. 17:9
Total Pixels 6,635,520 ((2048x1080) x 3)


Notes
1. * 2K input requires optional Dual-Link SDI Input Module.


Image Control
Horizontal Keystone Correction - Digital up-to 30% Left or Right
Horizontal Lens Shift (% of image width) up-to 10% Left or Right
Image Orientation Normal, Reversed, Inverted
Image Signal Resizing Smart Scaling Technology
Maximum Pitch up-to 10° Up or Down
Projector Elevation Adjustment (legs) up-to 3° Up or Down
Pixel Clock up-to 230 MHZ
Vertical Keystone Correction - Digital up-to 30° Up or Down
Vertical Lens Shift (% of image width) up-to 50% Up or Down


Lamp
Estimated Lamp Life Hours up-to 3,000 Hours
Lamp 380 Watts NSHA x 4


Supplied Lens
Image Diagonal 100-600 in (254 - 1,524 cm)
Image Width 7.4 - 44.2 ft. (2.2 - 13.5 m)
Image Width - Max. 13.5 m
Image Width - Min. 2.2 m
Lens Type Changeable - Does not come with Lens
Throw Distance (Wide~Tele) See specifications of selected lens


Computer Specifications
Computer Input in Pixels up-to 1600x1200 (4:3), 1920x1200 (16:10)
Computer In 4x3 analog UXGA, SXGA+,SXGA, XGA, SVGA, VGA, MAC
Computer In 4x3 digital SXGA+, SXGA, XGA, SVGA, VGA
Computer In Wide analog WXGA+, WXGA
Computer In Wide digital WUXGA, WSXGA+, WXGA+, WXGA


Controls
Local Control Full Function
Remote Control - Projector Wireless/Wired x 1


Video Specifications
Video Formats NTSC / PAL / SECAM / NTSC 4.43 / PAL-M&N
Video In analog 480i/p, 575i/p, 720p, 1035i, 1080i
Video In digital 480i/p, 575i/p, 720p, 1035i, 1080i/p, 2K


Physical Specifications
Cabinet Size (HxWxD) 13.7 x 25.6 x 32.1 in (34.9 x 65.0 x 81.5 cm)
Packaged Size (HxWxD) 21.3 x 33.3 x 37.4 in (54.2 x 84.6 x 95.1 cm)
Packaged Weight 125.7 lb (57.0 kg)
Weight 102.5 lb (46.5 kg)


Electrical Specifications
Power Management Auto Shutdown
Power Requirements 200-240V, 50/60 Hz AC
Power Consumption up-to 1,850 W
Power Cord 10 ft (3.2 m), IEC Type C13, Detachable


Environment
Generated Heat up-to 7,100 BTU/hr
Fan Noise as low as 48 dBA
Operating Temperature 41-104°F (5-40°C)


Safety
Electrical Safety Compliance IEC / UL / cUL
Electromagnetic Compatibility FCC Class A, CE Mark


Security
Security Facilities Steel Plate Chassis & Integrated Handles, More
UPC 4571194674859


User Maintenance
maintenance Empty Dust Bin, Replace Filters, Change Lamps
