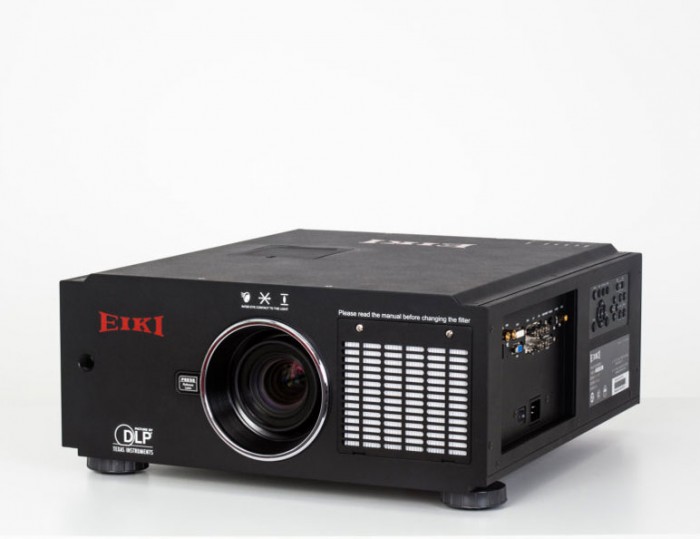

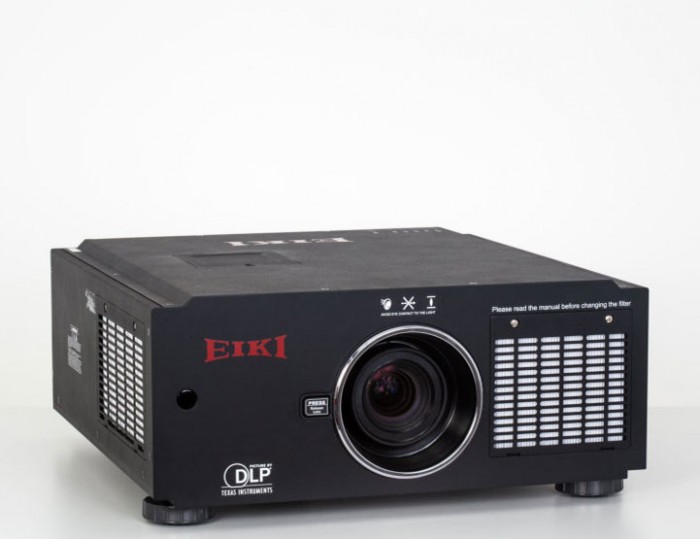

EIP-UHS100

8,000 ANSI lumens bright with 80% uniformity and a 2400:1 contrast ratio.

HDMI and 3G HD-SDI Digital connectivity.

Native WUXGA resolution. Compatible with inputs up-to UXGA and WUXGA.

Supports analog and digital video input in all color standards up-to 1080p.

User-changeable color wheel to optimize brightness or color.

Displays both 4:3 and 16:9 aspect ratios. Supports most HDTV resolutions.

Wired network monitoring and control.

Rear-accessed lamp for ease of maintenance.

Optional lens cover a range of 0.75 to 8.56:1 Throw ratios.

Built-in Edge Blending and Image Warping.

Lens Memory Features allow up to 10 saved settings.

Built-in Picture in Picture and Picture by Picture.

Security bar. Kensington® MicroSaver® security slot. PIN lock.

Ανήκει στη σειρά: DLP Technology

Display Technology 1 chip DLP®

Brightness (ANSI) 8,000 lumens

Native Resolution WUXGA (1920 x 1200), 16:10

Max. Computer Input WUXGA

Max. Video Input 1080p

Contrast Ratio 2400:1

Panel Size 0.67″DMD™ DLP® chip

Lens Type (Throw:Width) 1.73-2.27:1

Vertical Keystone Correction Horizontal Keystone Correction

Digital: Up-to 20º up or down; Digital: Up-to 35º left or right

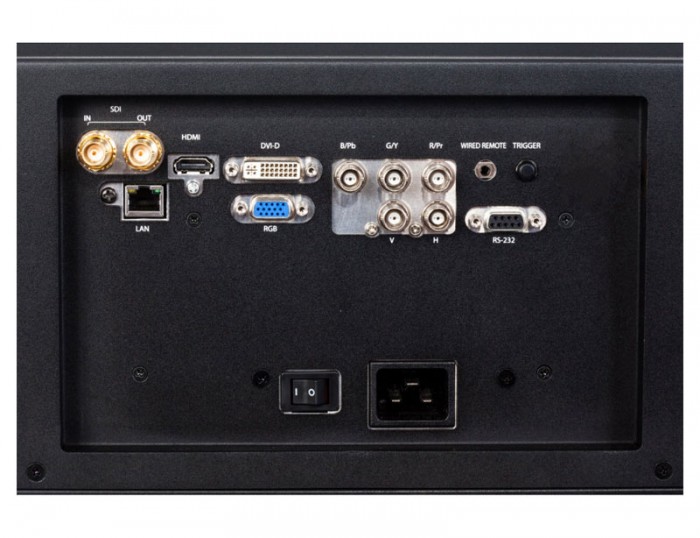

Inputs

Dsub15 x 1; DVI-D (w/ HDCP) x 1; HDMI® x 1; BNC x 5; BNC x 1; DC12V x 1

Outputs

3G HD-SDI

Network Control Wired LAN monitor & control

Fan Noise (Normal / Eco) 43 / 39 dBa

Air Filter Cartridge Filter (35,000 hours)

Maximum Pitch up-to 15° Up or Down

Weight 52.9 lb (24 kg)
