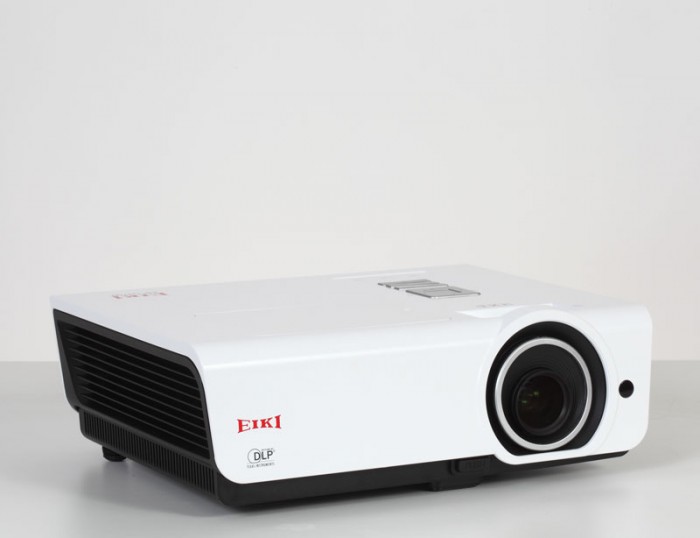

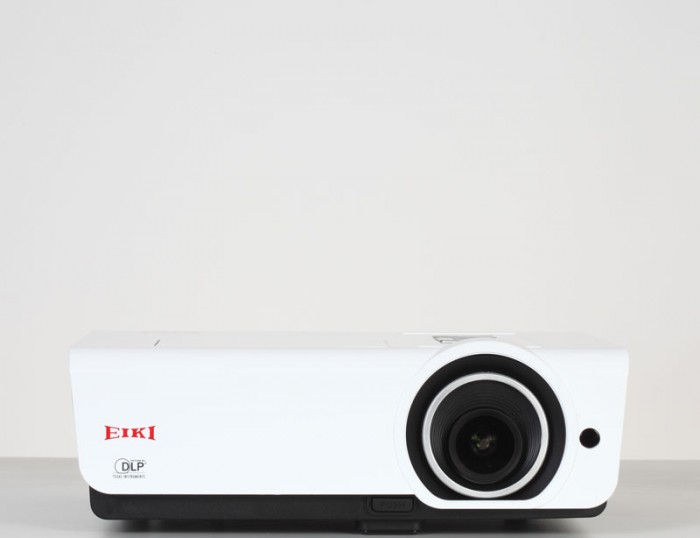

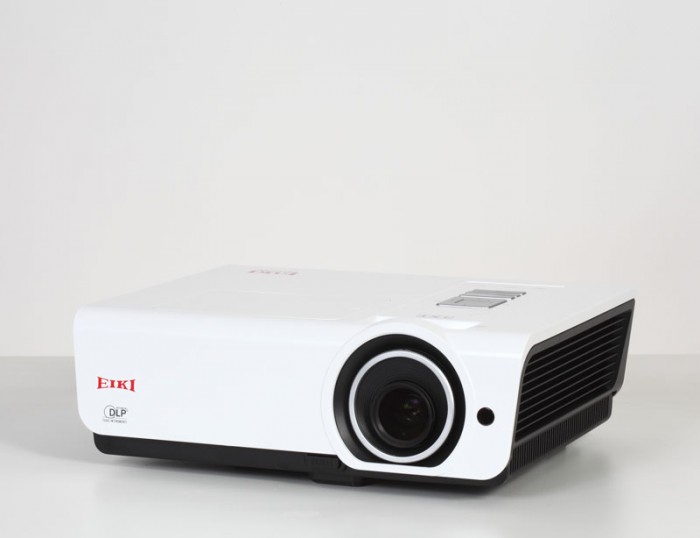

EIP-U4700

4,700 ANSI lumens bright with 80% uniformity and a 2200:1 contrast ratio.

HDMI and DisplayPort Digital connectivity with HDCP compliance.

Native WUXGA resolution. Compatible with inputs up-to UXGA and WUXGA.

Supports analog and digital video input in all color standards up-to 1080p.

Compatible with Crestron RoomView™ & AMX Device Discovery Technology.

Vari-focal mid-range manual zoom and focus lens. Fixed image offset

Accepts composite, component, and S-Video in all major standards.

Displays both 4:3 and 16:9 aspect ratios. Supports most HDTV resolutions.

Built-in 3 Watt sound system. Closed Caption decoding (NTSC).

Wired network monitoring and control. Digital zoom: 50% to 400%.

Top-accessed lamp for ease of maintenance.

Custom warm-up screen. Auto input selection.

Security bar. Kensington® MicroSaver® security slot. PIN lock.

Ανήκει στη σειρά: DLP Technology

Τεχνικά Xαρακτηριστικά
Φωτογραφίες
Προϊόντα ίδιας σειράς

Display Technology 0.67″DMD™ DLP® chip x 1

Brightness (ANSI) 4,700 ANSI Lumens

Native Resolution WUXGA (1920 x 1200)

Max. Computer Input WUXGA

Max. Video Input 1080p

Contrast Ratio 2200:1

Panel Size 0.67″

Lens Type (Throw:Width)

Attached – Manual Zoom & Focus Lens (1.6-1.92:1)

Keystone Correction Digital: up-to 30° Up or Down

Inputs

Dsub15 x 2 (component via optional adapter); HDMI x 2; Display Port x 1; S-Video x 1; RCA x 1 (composite); MiniStereo x 1 (computer audio); RCA x 2 (video audio);

Outputs

Dsub15 x 1; Variable, Stereo: MiniStereo x 1

Sound System Mono 3 Watt amp; 1.4 in (3.7 cm) speaker x 1 (Mono)

Network Control

Wired network monitoring and control

Fan Noise as low as 35 dBa

Maximum Pitch up-to 15° Up or Down

Weight 8.4 lb (3.8 kg)
