Connections - Auxilary Ports
Mouse, Wired RC, RS-232, Network interface
RS-232 Control Port Dsub 9-pin x 2 (in and out)
Network Interface Port RJ45 x 1
Service Port USB-B x 1
Wired RC Port MiniStereo x 1

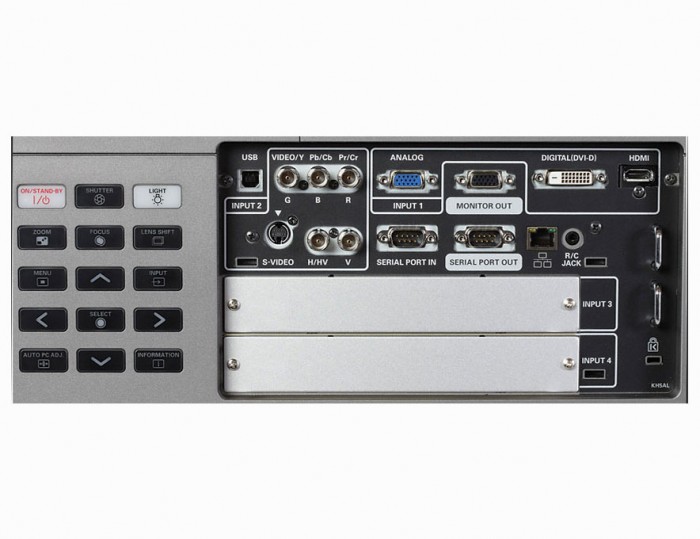

Connections - Image Signal Inputs
1a. Computer: Analog RGB - Dsub 15 x 1
1b. Computer: Digital RGB or Video: Digital Video w/HDCP - DVI-D x 1
1c. Video: Digital Video w/HDCP - HDMI x 1
2a. Computer: Analog RGBHV or Video: Composite/Component: Video / Y-Pb/Cb-Pr - BNC x 5
2b. Video: S-Video: - S-Video x 1
3. Empty module bay (unpopulated)
4. Empty module bay (unpopulated)


Connections - Outputs
Data / Video Monitor Analog RGB / Composite/Component - Dsub 15 x 1


Image Characteristics
Brightness up to 8,000 ANSI Lumens (**w/lens AH-43005S)(”Dynamic” image mode & DynamicBlack™ Off)
Contrast Ratio up to 7,500:1 (w/DynamicBlack™ high)
Horizontal Resolution - TV Lines 550 TV Lines (HDTV)
Illumination Uniformity (corner to center) 90%
Imaging System 0.95" DarkChip™ 1-chip DLP® x 1
Native Resolution 1920x1080 (16:9 aspect ratio)
Scanning Frequency Auto: H Sync. 15-120 kHz; V Sync. 48-120 Hz
Size of Color Palette 10 bit / 1.07 Billion Colors


Image Control
Color System High Brightness 4-segment color wheels x 2 (installed)
Front Elevation up to 5° up
Horizontal Anti Keystone Power Lens Shift (L:R~R:L) 3:1~1:3
Horizontal Keystone Correction - Digital up to 30° left or right
Image Orientation Normal, Reversed, Inverted
Maximum Pitch 360°
Pixel Clock up to 230 MHz
Vertical Anti-Keystone Power Lens Shift (Top:Bottom) 21:-1~-1:21
Vertical Keystone Correction - Digital up to 30° up or down


Lamp
Estimated Lamp Life Hours up to 3000 Hours of Use
Lamp 330 Watt VIDI™ UHP x 2


Supplied Lens
Image Diagonal 50~600 in. (127~1524 cm)
Image Width 3.64~43.6 ft. (1.11~13.20 m.)
Lens Type Not Included (choose from a selection of optional lenses)
Throw Distance (Wide~Tele) See specifications of selected lenses


Computer Specifications
Computer Compatiblity WUXGA (analog only), UXGA ~ WXGA, SXGA+ ~ VGA & MAC (analog & digital)
Computer Formats Supported 1920 x 1200 through 640 x 480
Computer Image Sizing Normal or Smart compressed or expanded


Controls
Local Control Full Function
Remote Control - Projector Wireless/wired x 1


Video Specifications
HDTV Compatibility 720p, 1080i/p, 1080 psf 30/25/24
SDTV Compatibility 480i/p, 575i/p ( Composite, S-Video, Component )
Video: Aspect Ratios Supported 4:3 & 16:9
Video: Color Systems NTSC/PAL/SECAM/NTSC 4.43 / PAL-M&N
Video: Image Sizing Video Scaling Technology


Physical Specifications
Cabinet Size (HxWxD) 9.6 x15.7 x 20.6 in.(242.5 x 400 x 524.2 mm.)
Packaged Size (HxWxD) 17.3 x 20.8 x 25.6 in. (439 x 528 x 651mm.)
Packaged Weight 54.2 lb (24.6 kg)
Weight 43.2 lb. (19.6 kg)


Electrical Specifications
Power Management Auto Shut-Off
Power Requirements 100-240V AC, 50/60Hz
Power Consumption up to 963W Standard Mode
Power Cord Type 3, Detachable


Environment
Generated Heat up to 3286 BTU/hr.
Operating Noise - dBA as low as 35 dBA
Operating Temperature 41~104°F (5~40°C)


Safety
Electrical Safety Compliance UL / cUL
Electromagnetic Compatibility FCC Part 15 Class A


Security
Kensington® Security Slot yes
Security Bar Handles (use a Security Bar)


User Maintenance
maintenance Replace Air Filter, Replace Lamps
