EIP-WSS3100

3,100 ANSI lumens bright with 80% uniformity and a 8000:1 contrast ratio.

HDMI Digital connectivity with HDCP compliance. 1-chip DLP® technology.

Native WXGA resolution. Compatible with inputs up-to UXGA and WSXGA+.

Supports analog and digital video input in all color standards up-to 1080p.

Compatible with Crestron RoomView™ & AMX Device Discovery Technology.

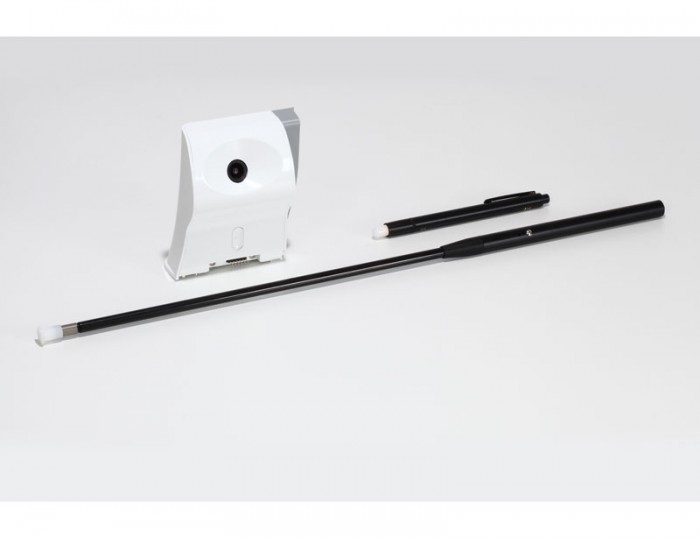

Interactive Features Optional. 3D Ready.

Ultra-Short Throw projector (0.35:1) manual focus lens.

Accepts composite, component, and S-Video in all major standards.

Displays both 4:3 and 16:9 aspect ratios. Supports most HDTV resolutions.

Built-in 10 Watt sound system. Closed Caption decoding (NTSC).

Wired network monitoring and control. Digital zoom: 2X

Side-accessed lamp for ease of maintenance.

Color board modes. Custom warm-up screen. Auto input selection.

Security bar. Kensington® MicroSaver® security slot. PIN lock.

Ανήκει στη σειρά: DLP Technology

Τεχνικά Xαρακτηριστικά
Φωτογραφίες
Προϊόντα ίδιας σειράς

Display Technology 0.65″DMD™ DLP® chip x 1

Brightness (ANSI) up-to 3,100 ANSI Lumens

Native Resolution WXGA (1280×800)

Max. Computer Input WSXGA+

Max. Video Input 1080p

Contrast Ratio up-to 8000:1

Panel Size 0.65″

Lens Type (Throw:Width)

Attached – Manual Focus Lens (0.35:1)

Keystone Correction Digital: up-to 15° U/D

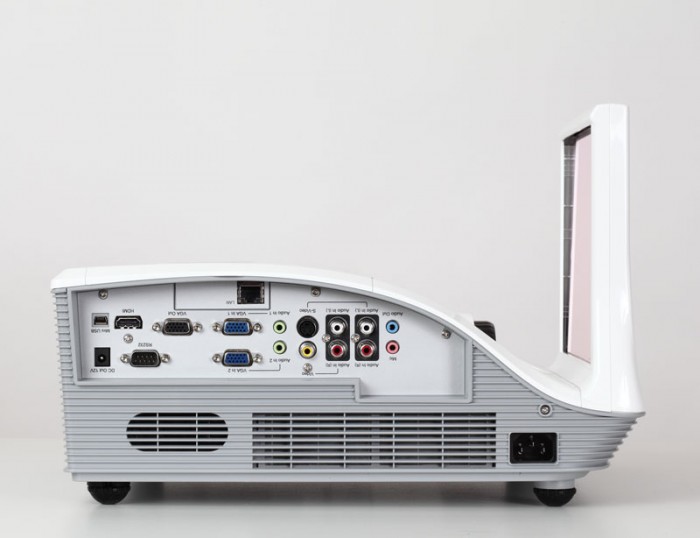

Inputs

Dsub15 x 2; HDMI (PC Digital / AV HDCP) x 1; S-Video x 1; RCA x 1; Mini USB x 1 (Display); MiniStereo x 2 (Analog Audio); RCA x 4 (Video audio); MiniStereo x 1 (Microphone)

Outputs

Dsub15 x 1; Variable, Stereo: MiniStereo x 1

Sound System 10 Watt 1.46 in (3.7 cm) speaker x 1 (Mono)

Network Control Wired network monitoring and control

Maximum Pitch Up to 360º

Weight 17.5 lb (8.0 kg)
