Protocol Standards

System standard: H.323,SIP

Video standard: H.263, H.263+, H.264

Audio standard: G.711, G.722.1 Annex C/Polycom Siren14TM , G.728

Dual video standard: H.239

Network protocols: TCP/IP, Telnet, HTTP, FTP, SNMP, DHCP, RTP/RTCP

Other standards: H.225, H.231, H.235, H.241, H.242, H.243, H.245, H.281

Conference Rate Up to 2 Mbps

Video Resolution

CIF (352×288), VGA (640×480), SVGA (800×600), XGA (1024×768)

Video Frame Rate

PAL: 25 frame/second, NTSC: 30 frame/second

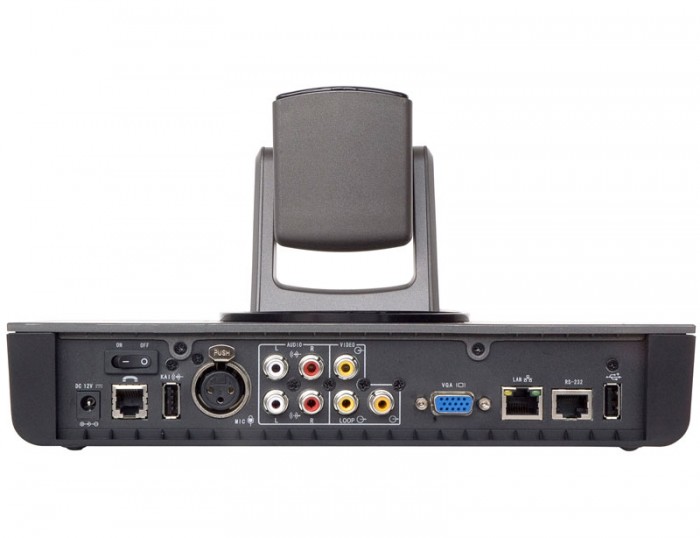

Video Input

1×RCA, composite video

Video Output

2×RCA, composite video, 1×VGA, PC content

Video Features

PIP display

Video input signal detection

Adjustment of brightness, saturation, and contrast

Local video loop function

Audio Input

1×MIC, XLR interface (12V phantom power supply)

2×RCA, line level

1×KAI, dedicated Samcen Audio Interface (Application functions to be extended)

Audio Output

2×RCA, line level

Audio Features

Automatic mixing of multiple inputs, Automatic Echo Cancellation (AEC), Automatic Noise Suppression (ANS), Automatic Gain Control (AGC), Mute and quiet control, Active lip synchronization

Network Interface

TS6210:1×10/100Mbps

TS6210E: 2 x 10/100Mbps

WiFi optional, IEEE 802.11b/g

Control Interface

1×RS232, Infrared remote control

Phone Interface

1×FXO

Other Interfaces

1×USB 2.0 (Application functions to be extended)

Network Adaptability

NAT/firewall traversal, Socks5 traversal, IPLR, Dynamic rate adjustment, QoS (DiffServ, IP Precedence), IP address conflict detection, PPPoE

Embedded MCU (Only for SCS-6210E)

6-point MCU (local site + 5 remote sites), Continuous Presence, and intelligent mixing, NAT/Firewall traversal, Embedded gatekeeper

Security Features

H.235 conference encryption, 128-bit AES encryption, Conference password, Login authentication and authorization, Gatekeeper password authentication

Management and Diagnosis

OSD menu management via a remote control, PC Web login management, Online configuration and remote upgrade, Terminal self-test, loopback test, color bar test, and audio test, Running status monitoring, alarm display and sending, Address book management, Virtual meeting room on SCS serial MCU(need to setup new title), Extend to multi-points via embedded MCU*

* SCS-6210E only

Multicast Functions

Conference streaming multicast, Dual video streaming multicast, Multicast password authentication

Dual Video Stream

H.239 dual video stream, Adjustable dual streaming bandwidth allocation, PIP mode/Dual display mode

Language Support

Chinese, English, French

Input Language: Chinese, English

Caption Function

Boardroom logo, Boardroom simulation banner, Short message sending/receiving

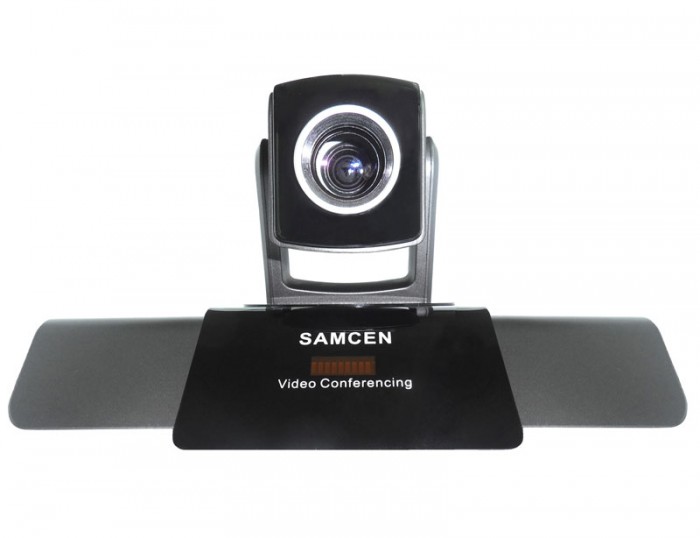

Camera

Optical zoom: 18X

Maximum horizontal angle of view: 48°

Pan Range: ±100°

Tilt Range: ±30°

Horizontal resolution: 460 lines

Minimum illumination: 1.0 lux

Auto/manual zoom

Automatic white balance

PTZ control

Electric Features

Power consumption: ≤30W

Adapter power supply: AC (90~246V/47~63Hz)

Environmental Requirement

Operating temperature: 0oC~40oC

Operating humidity: 5%~85% (non-condensing)

Atmospheric pressure: 86~106kPa

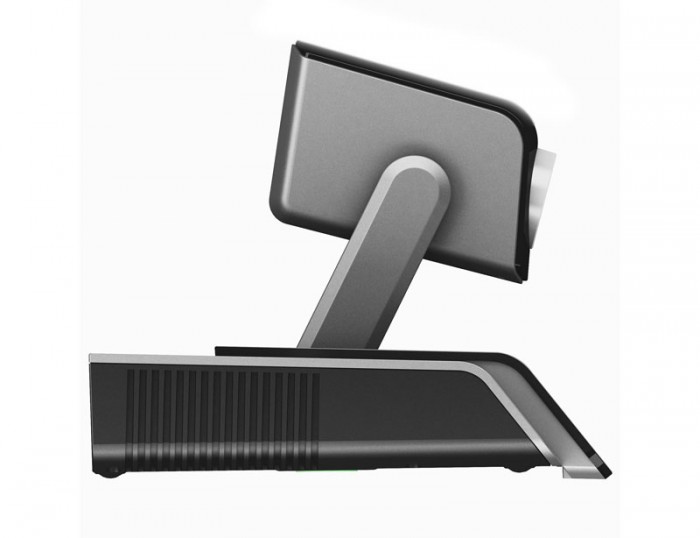

Physical Features

Dimensions:150mm (H)×270mm (W)×210mm(D)

Weight: ≤2kg
