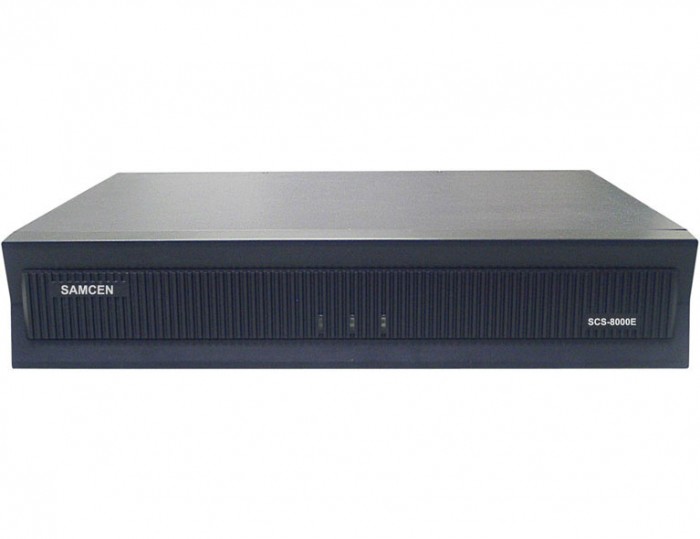

SCS-8000E

SCS-8000E is a high performance embedded and integrated Multipoint Control Unit (MCU), which provides an IP-based videoconferencing bridging platform. This innovative unit is combined with integrated services such as Gatekeeper, proxy and T.120, no need of deployment of any additional device or server in existing network environment. No matter through Internet, VPN (Virtual Private Network) or leased lines, SCS-8000E performs cost-effectively with the most concise architecture to replace the conventional “platform + additional servers” structure. SCS-8000E supports efficient H.264 video coding/decoding technology and H.239 dual video stream, it also provides powerful media processing capabilities such as Continuous Presence and Intelligent Audio Mixing.

Products Highlights

Quality Conference Result

Flexible Access Capacity

Excellent Network Adaptability

Powerful Conference Features

High Security and Reliability

Cost Effective and Protect Investment

Ανήκει στη σειρά: Video Conferencing

Δείτε το προϊόν στην ιστοσελίδα του κατασκευαστή

Τεχνικά Xαρακτηριστικά
Προϊόντα ίδιας σειράς

Standards Followed

System standard: H.323

Video standard: H.261, H.263, H.263+, H.264, MPEG-2, and MPEG-4

Audio standard: G.711, G.722, G.722.1 Annex C/Polycom? Siren14TM, G.722, G.723.1, G.728, G.729, MP3

Dual video standard: H.239

Network protocol: TCP/IP, Telnet, HTTP, FTP, SNMP, DHCP, RTP/RTCP

Other standards: H.225, H.231, H.235, H.241, H.242, H.243, H.245, H.281, T.120

System Capacity

Nine optional configurations: 8, 12, 16, 24, 32, 40, 48, 56, and 64 users

Supporting a maximum of 16 groups of conferences at the same time

Network Interface

16 users or less: two 10/100M interfaces

24 users or more: one 10/100M interface, and one 10/100/1000M interface (electrical interface)

Conference Rate Up to 4 Mbps

Video Resolution

QCIF (176 × 144), CIF (352 × 288), 4CIF (704 × 576), VGA (640 × 480), SVGA (800 × 600), XGA (1024 × 768)

Continuous Presence

2, 3, 4, 9 and 16 pictures, N + 1 pattern style

Dynamic picture auto-trace

Speaker indicated by frame color

Audio Features

Intelligent Audio Mixing, Mute and dumb control, Voice Active Detection

Conference Functions

Conference template, Conference booking, Director control, chairman control, voice activation, auto polling, Endpoint join-in request, chairman request, speaker request, and chime-in request

Cascade Conference

Supporting visual MCS software

Caption

Conference caption scroll, Configuration and management in WEB mode, Caption entry or file load, Group sending or selective sending

Dual Video Stream

H.239 dual video stream, Adjustable dual stream bandwidth allocation, Originate dual stream right setting

Data Conference *

T.120 standard conference

Rate range: 64Kbps ~ 2Mbps

Whiteboard, application sharing, file transfer and multi-party chat

Supporting the access of a maximum of 32 parties

* This function module is optional

Embedded GK

Endpoint registration, Address resolution, Call control, Bandwidth control, Regional management

Network Adaptability

NAT/firewall transversal, IPLR, QoS (DiffServ, IP Precedence), Access in multiple network sections, Multicast conference

Security Features

H.235 conference encryption, 128-bit AES encryption, Conference password protection, conference lock protection, Management User authentication and authorization, Multicast user authentication

Management and Maintenance

Configuration in interface mode, Remote configuration/upgrade, System log

Electric Features

Power consumption of integrated system: ≤ 50W

Power supply: AC (187 ~ 253V/47.5 ~ 52.5Hz)

Environmental Requirement

Ground resistance: ≤ 5Ω

Operating temperature: 0oC ~ 45oC

Operating humidity: 10% ~ 90% (non-condensing)

Atmospheric pressure: 86 ~ 106 kPa

Physical Features

19-inch 1U rack

Height × width × depth: 44mm × 483mm × 310mm

Weight: ≤ 4.7 kg
