KT1-C3

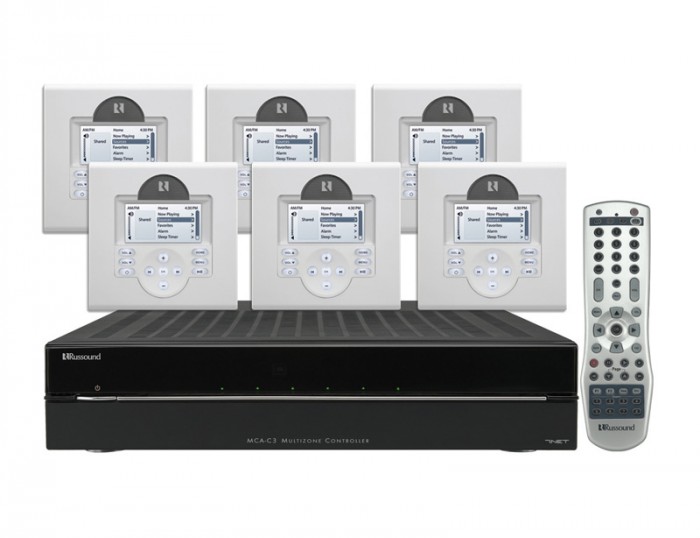

Σύστημα Multi room /Multi zone με ενισχυτή έξι ζωνών (20Watts ανά ζώνη), ενσωματωμένο tuner AM/ FM, 6x Αudio είσοδοι, ROUTED IR, προσαρμοζόμενο bass/treble/loudness, ενσωματωμένο IR learner & προγραμματισμένη IR library, θύρα RS-232 στο πίσω μέρος, color-coded detachable 14 gauge-snap connectors, rack-mount 2-unit high, 12 Volt & H.T. triggers. Παρέχεται με: 6x MDK-C5 πληκτρολόγια χερισμού, 1x SRC-C5. Απαιτείται για την τοποθέτησή των πληκτρολογίων χειρισμού, κουτί εντοιχισμού S2-35-RAC. Παρέχεται με δυνατότητα τοποθέτησης σε rack.

Ανήκει στη σειρά: C-Series System

Multizone Controller Amplifier MCA-C3

Shipping Dimensions: 21.0" (W) x 10.0" (H) x 17.0" (D) (53.3 x 25.4 x 43.2 cm)
Shipping Weight: 27.0 lbs (12.3 kg)
Antenna Impedance
AM: 300 Ohm balanced
FM: 75 Ohm unbalanced
Audio Source Inputs: 6 (including internal tuner and page input)
Communication Ports
Front- 1 USB 2.0/1.1
Rear- 1 Serial RS232, 19.2 kHz baud rate
(1) Ethernet RJ-45, 10/100 Base T
(2) RJ-45 RNET links In/Out
Frequency Range
AM 530 - 1710 kHz
FM 87.7 - 107.9 MHz
Frequency Response: 20Hz-20kHz +/- 1 dB at 1W output into 8 ohms
Fuse Rating: 220-240V/T1.25A 250V
Image Rejection
AM: 33 dB
FM: 80 dB
IR Outputs: (6) routed, (1) common
Keypad Outputs: (6) RJ-45 T568A standard
Power Consumption: 400 watts maximum
Power Consumption: (Standby) <1.0 watt
Power Supply: 240 VAC
S/N Ratio
AM: 45 dB
FM: 60 dB
Sensitivity
AM: @20 dB S/N 55 dBu
FM: @30 dB S/N 6 dB max 12 dBu
Signal to Noise Ratio: 93 dB unweighted, 96 dB A-weighted
Speaker Connection(s): (6) detachable, (4) pole connectors
Total Harmonic Distortion: <0.10%
Trigger Input(s): (1) Home Theater 12VDC max, (1) Page 12VDC max
Trigger Output(s): (6) 12VDC 100mA, (1) Home Theater
Watts per channel: 20W RMS into 8 ohms


MDK-C5 keypad

High-resolution multiline display.
Menu driven interface.
IR receiver with auxiliary input (plasma proof option).
Standard FIT™ two-gang box.
Available in five finishes.
Shipping Dimensions:8.0" (W) x 3.3" (H) x 7.5" (D)(20.3 x 8.3 x 19.1 cm).
Shipping Weight:1.1 lbs (0.5 kg).
CAT-5e Connection:RJ-45 (T568A standard).
Display:70 mm (W) x 35 mm (H) High resolution LCD.
Inside Box Dimensions:3.5" (W) x 1.5" (D) x 2.75" (H) (8.9 x 3.8 x 6.9 cm).
Power Requirement(s):275mA @ 12VDC MAX.
Wall Surface Dimensions:4.5" (W) x 4.5" (H) (11.43 cm x 11.43 cm).


SRC-C5 remote control

Preprogrammed with IR learning capabilities for control of electronics from one remote.
Commands up to 8 sources and includes two favorites keys for fast access to satellite channels or radio stations.
Backlit buttons.
Shipping Dimensions:2.5" (W) x 8.3" (H) x 1.5" (D) (6.4 x 21.0 x 3.8 cm).
Shipping Weight:0.6 lbs (0.2 kg).
Batteries:(2) AA alkaline.
Finish:Silver.
Learning Capacity:40-100 commands.
Sources Supported:8,with direct selection keys.
System(s) Supported:C-Series System (MCA-C5).
Type:Programmable learning system remote.
