KT1-C5

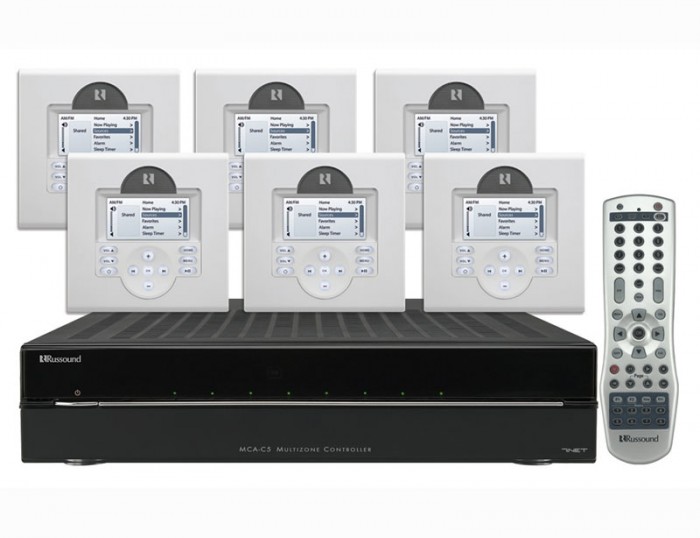

Σύστημα  Multi room / Multi zone με ενισχυτή οκτώ ζωνών (40Watts ανά ζώνη), 8 x Αudio είσοδοι, 8 x σταθερές/ ρυθμιζόμενες έξοδοι LINE, ROUTED IR, προσαρμοζόμενο bass/treble/loudness, ενσωματωμένο IR learner & προγραμματισμένη IR library, θύρα RS-232 στο πίσω μέρος, color-coded detachable 14 gauge-snap connectors, rack-mount 2-unit high, 12 Volt & H.T. triggers. Παρέχεται με: 6 x MDK-C5 πληκτρολόγια χερισμού, 1 x SRC-C5, 1 x AM Antenna, 1 x FM Antenna, 6 x 845.1 infrared. Απαιτείται για την τοποθέτησή των πληκτρολογίων χειρισμού, κουτί εντοιχισμού S2-35-RAC. Παρέχεται με δυνατότητα τοποθέτησης σε rack.

Ανήκει στη σειρά: C-Series System

Δείτε το προϊόν στην ιστοσελίδα του κατασκευαστή

Multizone Controller Amplifier MCA-C5

Party mode, Source linking, and Zone linking.
Alarm and sleep timer.
Optional System Wide Paging capability (through source 8 input).
Shipping Dimensions:21.7" (W) x 8.4" (H) x 21.0" (D) (55.1 x 21.3 x 53.3 cm).
Shipping Weight:33.8 lbs (15.3 kg).
Antenna Impedance:AM: 300 Ohm balanced
FM: 75 Ohm unbalanced
Audio Source Inputs:8 (including internal tuner and page input).
Communication Ports:Front- 1 USB 2.0/1.1.
Rear- 1 Serial RS232, 19.2 kHz baud rate.
(1) Ethernet RJ-45, 10/100 Base T.
(2) RJ-45 RNET links In/Out.
Frequency Range:AM 530 - 1710 kHz
FM 87.7 - 107.9 MHz
Frequency Response:20Hz-20kHz +/- 1 dB at 1W output into 8 ohms.
Fuse Rating:100-120V/T5.0A 250V US and Canada.
220-240V/T3.15A 250V Europe.
Image Rejection    AM: 33 dB
FM: 80 dB
IR Outputs:(6) routed, (1) common.
Keypad Outputs:(8) RJ-45 T568A standard.
Power Consumption:600 watts maximum.
Power Supply:110 or 240 VAC.
S/N Ratio AM: 45 dB
FM: 60 dB
Sensitivity AM: @20 dB S/N 55 dBu.
FM: @30 dB S/N 6 dB max 12 dBu.
Signal to Noise Ratio:93 dB unweighted, 96 dB A-weighted.
Speaker Connection(s):(6) detachable, (4) pole connectors.
Total Harmonic Distortion:<0.05%, 1W output into 8 ohms 20Hz-20kHz.
Trigger Input(s):(1) Home Theater 12VDC max.
Trigger Output(s):(8) 12VDC 100mA, 1 common.
Watts per channel:40W (1kHz into 8 ohms with <5% THD+N),
2 channels at full power, 10 channels at 1/8th.


MDK-C5 keypad

High-resolution multiline display.
Menu driven interface.
IR receiver with auxiliary input (plasma proof option).
Standard FIT™ two-gang box.
Available in five finishes.
Shipping Dimensions:8.0" (W) x 3.3" (H) x 7.5" (D)(20.3 x 8.3 x 19.1 cm).
Shipping Weight:1.1 lbs (0.5 kg).
CAT-5e Connection:RJ-45 (T568A standard).
Display:70 mm (W) x 35 mm (H) High resolution LCD.
Inside Box Dimensions:3.5" (W) x 1.5" (D) x 2.75" (H) (8.9 x 3.8 x 6.9 cm).
Power Requirement(s):275mA @ 12VDC MAX.
Wall Surface Dimensions:4.5" (W) x 4.5" (H) (11.43 cm x 11.43 cm).


SRC-C5 remote control

Preprogrammed with IR learning capabilities for control of electronics from one remote.
Commands up to 8 sources and includes two favorites keys for fast access to satellite channels or radio stations.
Backlit buttons.
Shipping Dimensions:2.5" (W) x 8.3" (H) x 1.5" (D) (6.4 x 21.0 x 3.8 cm).
Shipping Weight:0.6 lbs (0.2 kg).
Batteries:(2) AA alkaline.
Finish:Silver.
Learning Capacity:40-100 commands.
Sources Supported:8,with direct selection keys.
System(s) Supported:C-Series System (MCA-C5).
Type:Programmable learning system remote.



845.1 emitters

Miniature head unobtrusively attaches to your equipment.
Plug-in design installs quickly.
10' (3 m) cable accommodates virtually any component setup.
Shipping Dimensions:4.0" (W) x 0.5" (H) x 6.0" (D) (10.2 x 1.3 x 15.2 cm).
Shipping Weight:0.4 lbs (0.2 kg).
Cable Length:10' (3m).
Connector(s):0.125" (3.5 mm) TS mini plug, tip positive.
Head Dimensions:0.5" (W) x 0.375" (H) x 0.25" (D) (12.7 x 9.6mm x 6.4mm)
Operating Voltage:5-12 VDC.
