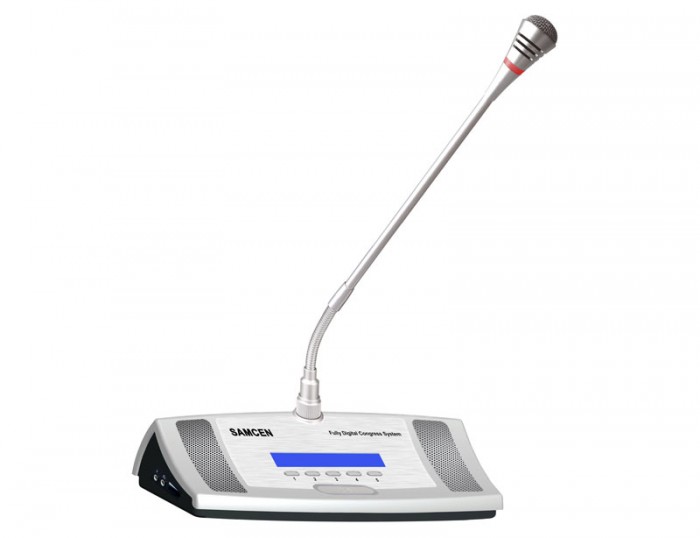

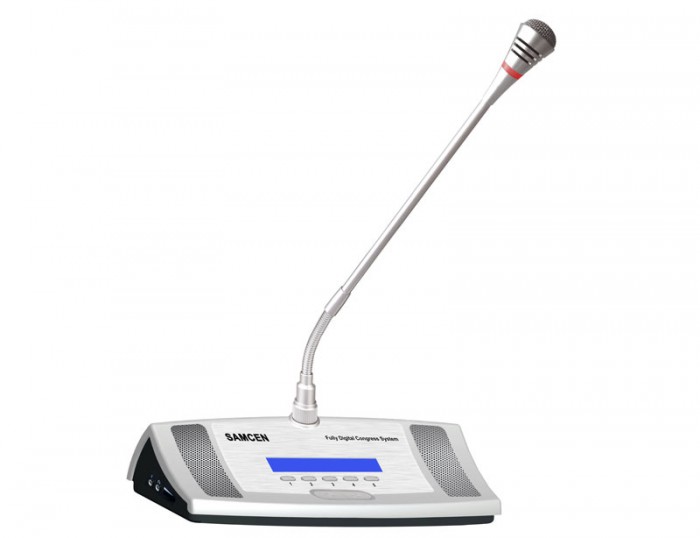

SCS-6190C/D
Novel appearance design and exquisite technical process enable the cabinet rank in the first line of international superior conference system
5 keys for voting and electing
With the function of sign in
Working with Samcen software for various kinds of voting
First choice for large-scale & important conferences, such as International Conferences, Summits, Standing Committee
With voice control ability,the voice can turn on microphone, it does not need to press the microphone button by hand
Each microphone unit connects “hand in hand”, avoid the miscellaneous of circuit, easy to install and maintain. It is also benefit to add/cut down the microphone units
Perfect sound quality, feedback eliminator function. When microphone is turned on, the built-in loudspeaker closes automatically to avoid feedback.
Double microphones input(with clip-on microphone interface)
Gooseneck condenser microphone supports “PnP”(Plug-and-Play), speaking with red ring indicator
Microphones power controllable by main unit, the input voltage is 24V. It’s safety voltage.
LCD display shows congressional information and status of equipment
Working with the control system to realize the function of camera auto-tracking
Chairman unit has priority to speak, it can close/ temporarily muting the delegate unit
Super powers of anti-electromagnetic and mobile phone interference
Microphone rods can be taken down during the recess, easy to maintain
Humanization design. There is different length MIC rods to choose, it is suitable for different height attendances
Without software, chairman can launch a simple vote:
Sign in, elect 1/3, elect1/5, vote and score, the result will be displayed on LCD screen
With SAMCEN professional software:
Sign in, elect 1/3, elect1/5, vote and score
The list of candidate and attendance, result of sign in, the bill title and details display on the main screen and the second screen
Check the problem unit and find out who do not sign in
Display the result of voting in the form of data or chart and print out
Ανήκει στη σειρά: Fully Digital Voting System
Power supply DC24V supplied by the control host
Intercommunication DIN 8-pole
Power consumption 3W
Loudspeaker power 1.2W
Transducer type Electret condenser
Directional pattern Cardioid
SNR > 80dB
Crosstalk attenuation at 1k Hz > 80dB
Distortion <0.10%
Frequency response 60~12KHz
Equivalent noise ≈20dB SPL
Maximum SPL 105dB(3% threshold)
Sensitivity -22dBv/Pa
