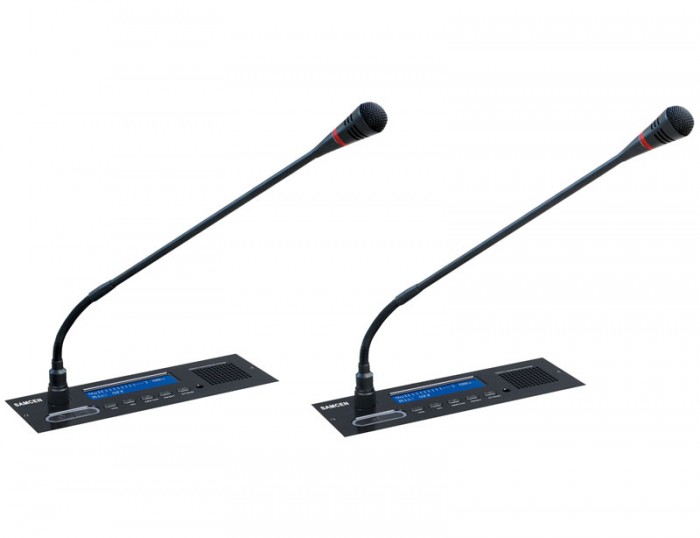

SCS-6170C/D
With its artistic, taste and streamline design, able to fused together with any conference room
Using the metal wiredrawing craft, makes it strong and durable, it seems on quite the scale
Flush installation makes the meeting table more clean and tidy, presents rigorous and visual effect
Condenser MIC core, with two colors indicator
Power supply from main unit, 24V safety voltage input
Built-in loudspeaker, earphone interface and volume adjustment button(when the microphone startup, the built-in loudspeaker will closes automatically)
With voice control ability,the voice can turn on microphone, it does not need to press the microphone button by hand
Bring 2.1meters dedicated cable, increased reliability with “hand in hand” connection topology
System with function of automatic restoration, support “PnP”(Plug-and Play)
Chairman unit has priority to speak, it can close/ temporarily muting the delegate unit
Super powers of anti-electromagnetic and mobile phone interference
Microphone rods can be taken down during the recess, easy to maintain
Humanization design. There is different length MIC rods to choose, it is suitable for different height attendances
LCD display shows congressional information and status of equipment
Connect to camera can realize the function of camera auto-tracking
5 keys for voting and electing
Without software, chairman can launch a simple vote:
Sign in, elect 1/3, elect1/5, vote and score, the result will be displayed on LCD screen
With SAMCEN professional software:
Sign in, elect 1/3, elect1/5, vote and score
The list of candidate and attendance, result of sign in, the bill title and details display on the main screen and the second screen
Check the problem unit and find out who do not sign in
Display the result of voting in the form of data or chart and print out
Ανήκει στη σειρά: Fully Digital Voting System
Power supply DC24V supplied by the control host
Intercommunication DIN 8-pole
Power consumption 3W
Loudspeaker power 1.2W
Transducer type Electret condenser
Directional pattern Cardioid
SNR > 80dB
Crosstalk attenuation at 1k Hz > 80dB
Distortion <0.10%
Frequency response 60~12KHz
Equivalent noise ≈20dB SPL
Maximum SPL 105dB(3% threshold)
Sensitivity -22dBv/Pa
