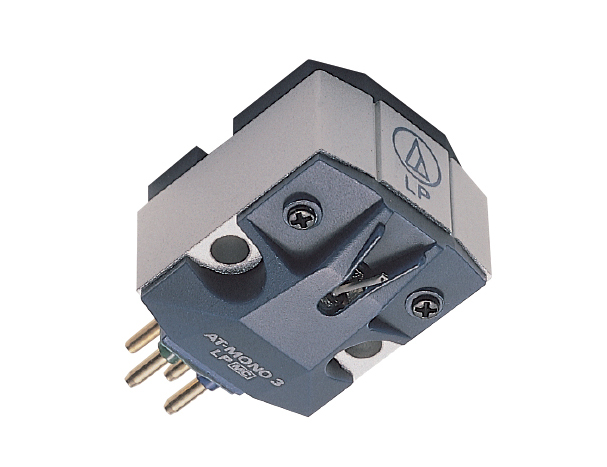

Type: Moving Coil

Frequency Response: 20 to 20,000 Hz

Coil Impedance: 40 W (1 kHz)

DC Resistance: 40 W

Vertical Tracking Angle: 23 degrees

Recommended Load Impedance: 400 W to 47,000 W

Coil Inductance: 190 mH (1 kHz)

Static Compliance: 20 x 10 – 6 cm / dyne

Dynamic Compliance: 7 x 10 – 6 cm / dyne (100 Hz)

Output Voltage: 1.2 mV (at 1 kHz, 5.0 cm/sec)

Stylus Shape: Conical

Cantilever: Aluminium Pipe

Stylus Construction: 0.6 mil

Mount: 1/2” centers

Dimensions: 16.0 (H) x 16.6 (W) x 26.5 (L) mm

Weight: 6.8 g

Accessories: Non magnetic screw driver; 1 brush; 2 washers; 2 x 19 mm mounting screws; 2 x 13 mm mounting screws; 2 x nuts; 1 plastic protector; 1 set of PCOCC lead wires AT6101
