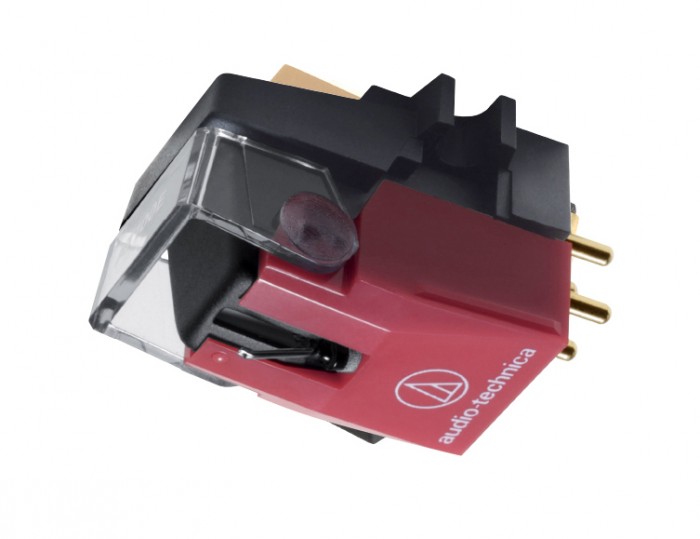

Type: VM Dual Magnet

Frequency Response: 20 to 20,000 Hz

Channel Separation: 27 dB (1 kHz)

Channel Balance: 1.5 dB (1 kHz)

Vertical Tracking Angle: 23 degrees

Recommended Load Impedance: 47,000 W

Coil Inductance: 360 mH (1 kHz)

Static Compliance: 35 x 10 – 6 cm / dyne

Dynamic Compliance: 8.0 x 10 – 6 cm / dyne (100 Hz)

Output Voltage: 4.5 mV (at 1 kHz, 5 cm/sec)

Stylus Shape: Elliptical

Cantilever: Aluminium Pipe

Stylus Construction: Jointed Round Shank

Mount: 1/2” centers

Dimensions: 17.3 (H) x 16.0 (W) x 28.2 (L) mm

Weight: 6.5 g

Accessories: Non magnetic screw driver; Anti-static stylus brush; Two 8 mm installation screws; Two 5 mm installation screws; Two hexagonal nuts; Two round nuts; Four washers;
