Performance
Frequency response in-room within 3dB from 30Hz to over 20kHz.
Maximum output >112dB spl @ 1m on music material.
Noise less than 15dB spl.
Overall electronic distortion typically <0.02% at any frequency or level.

Inputs
1x phono digital input (S/PDIF)
1x balanced digital (AES/EBU) input on RJ45; 32kHz–96kHz sampling rates at up to 24 bit; MHR support. RJ45 input also carries RS232 and trigger.

Outputs
1x RJ45 with balanced digital audio and control for a second loudspeaker. Carries infra-red pick up for system automation.

Construction
‘3½-way’ acoustic reflex system.
Digital crossovers at 200Hz and 2.6kHz.
2 x 200mm long-throw bass drivers.
1 x 160mm polypropylene mid driver.

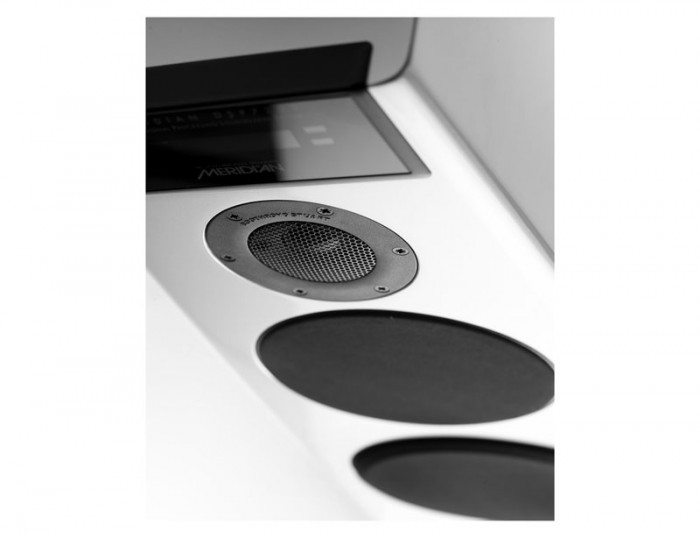

1 x 25mm aluminium-dome tweeter, silver wire, short horn-loaded.
Gloss black or silver piano-lacquer cabinet, other colours available to order.

Electronics
FIFO memory buffer input for the lowest possible jitter from almost any source.
Analogue gain & filtering with proprietary Meridian Class-A discrete amplification.
Digital & conversion electronics utilise advanced surface-mount techniques and partitioned 6-layer printed-circuit boards.
4x 24-bit 128x oversampling D/A converters for maximum audio quality.
4x 150W/4Ω power amplifiers – one per driver.

Dimensions
1072 (42.25) H (no feet), 350/180 (13.75/7.1) W, 415/217 (16.5/8.5) D [base/top, mm (in)]

Weight
55kg (121 lb) each.

Controls
Rear-panel controls for Power On/Off.
MSR+ and RS232

Front display
Eight-character display w/ system lights (may be turned off)

Power
20W standby, 920W max
