Performance

Frequency response in-room within 3dB from 35Hz to over 20kHz. Linear-phase mid/top crossover. Output >108dB spl @ 1m on music material. Noise less than 15dB spl. Overall distortion typically <0.02% at any frequency or level.

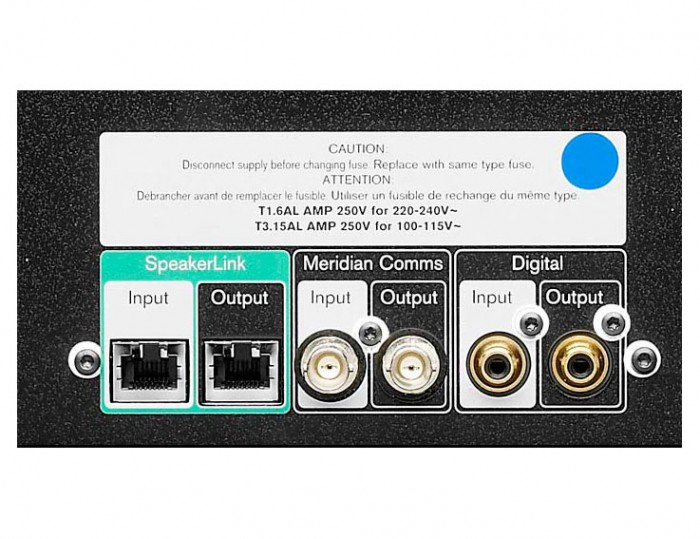

Inputs

Meridian SpeakerLink in and out (RJ45)
S/PDIF digital input, 32kHz–96kHz sampling rates at up to 24 bit with MHR support (phono).

Construction

‘2 1/2-way’ acoustic reflex system. Single-port (vertical model) or dual-port (horizontal centre).

Drivers

2 x 160mm polypropylene bass drivers.
1 x 25mm aluminium-dome tweeter, silver wire, short horn-loaded.

Electronics

Two precision 24/192 oversampling converters for bass/mid and tweeter signals. Active bass/mid crossover. Digital and conversion electronics constructed using advanced surface-mount techniques and partitioned 6-layer printed-circuit boards.

DSP

150MIPS digital signal processor. Digital crossover at 2.6kHz. Response correction for the whole system. Bass protection. User tone controls. Analogue/digital volume and phase control.

Amplifiers

Three 75W power amplifiers, one for each driver.

Display

Eight-character display with system lights, can be blanked.

Dimensions

Height 200mm;  width 734mm; depth: 265.75mm at deepest point.

Weight

35kg packed
