MODEL-10 (χωρίς βραχίονα)

Πλατό αναφοράς, Ξεχωριστό τροφοδοτικό 33/45 RPM, χωρίς βραχίονα
Μεταλλικό σασί βάρους 4.6kg στηρίζεται σε τρεις αντικραδασμικούς μηχανισμούς απόσβεσης υψηλής ταχύτητας και ακριβείας.
Το πλατό είναι από κατεργασμένο κράμα αλουμινίου και μαγνησίου βάρους 4.2kg. Ειδικό clamp προσαρμογής των δίσκων, Βάρος: 16kg

Δείτε το προϊόν στην ιστοσελίδα του κατασκευαστή

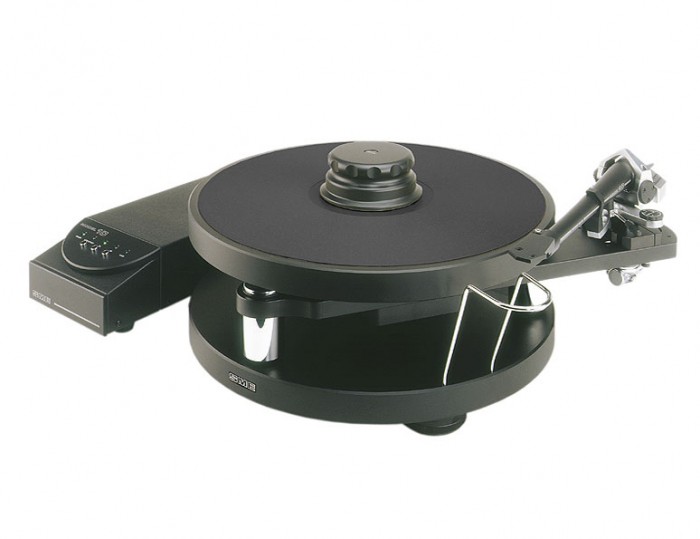

The Model 10 weighs more than 15kg (33lb) but is only Ø304mm, thus meeting all the requirements of high density construction on which freedom from colouration depends.

The turntable is supported on three large polymer isolators within adjustable feet allowing quick and easy levelling.

A cruciform sub-chassis carried on three polymer loaded towers. A novel design which affords impressive isolation without float.

Fully machined extensionally damped platter, diamond turned top surface with a fine scroll finish for optimal record interface.

Large diameter reflex record clamp ensures largest possible platter/record contact.

Speeds: 33.3, 45 and 78 rpm

Polished stainless steel stylus guard.

Soft dust cover to accommodate the turntable and arm, when not in use.

Dimensions: 370 x 250 x 161mm (Record clamp fitted).

Net weight with power supply: 16kg (38lb).

Substantial packing case with internal fitments: 745 x 405 x 240mm

Shipping weight: 18.25kg (55lb)
