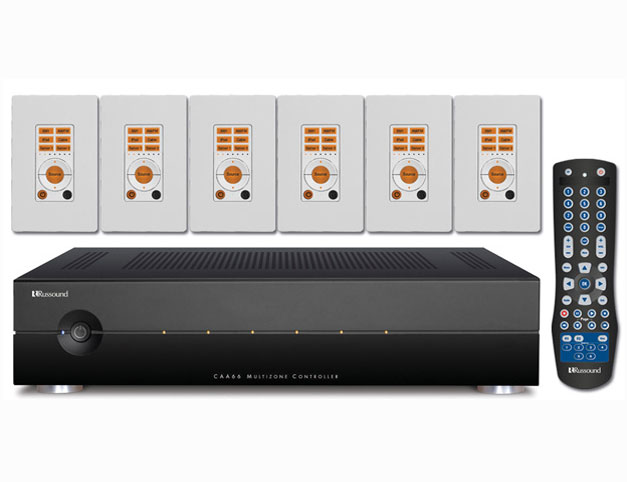

Multi room-Multi zone Controller/Amplifier CAA66.

Shipping Dimensions:19.0" (W) x 9.0" (H) x 26.0" (D) (48.3 x 22.9 x 66.0 cm)
Shipping Weight:17.6 lbs (8.0 kg).
Amplifier Channels:12.
Audio Source Inputs:6.
Frequency Response:20 Hz to 20 kHz +0/-2.5 dB.
Fuse Rating:US/Canada: F3.0A H 250V
Europe: TF1.25A H 250V
Input Impedance:50 kilohms.
Line Audio Outputs:Switchable fixed/variable (zones 1 & 2 only), 2.2 Vrms.
Mute Trigger Input:12VDC.
Power Rating:100-120 VAC 3 A or 220-240 VAC 1.25 A, 50-60Hz.
Signal to Noise Ratio:>90 dB A-weighted, >88 dB unweighted.
Speaker Impedance:8 ohms.
Total Harmonic Distortion:<0.10% THD+N from 20 Hz to 20 kHz.
Trigger Output(s):12 VDC 100 mA max.
Watts per channel:20W RMS into 8 ohms.
Zones per Controller:6.
Zones per System:36 maximum.




KP6 Keypads

Easy-to-use buttons and visual feedback for simple multiroom operation.
Controls bass, treble, balance, loudness and "all off" for total control.
Includes 20 source labels for system personalization.
Sophisticated Decora®-style design, available in five colors.
Shipping Dimensions:2.5" (W) x 2.3" (H) x 4.5" (D) (6.4 x 5.7 x 11.4 cm)
CAT-5e Connection:110 punch-down block.
Controls:On/off
Volume up/down
Source select
Audio (bass, treble, balance, turn-on volume, loudness)
IR Control:Built-in IR receiver with pass-through.
Keypad Backlight:Amber.
Power Requirement(s):12 VDC 180 mA (supplied through CAT-5 cable).




CAS Remote control

Simply point at your keypad and press to turn on and select your music.
Sleek design fits comfortably in your palm.
Conveniently programmed to instantly work with Russound sources.
Controls most source components from one remote control.
Shipping Dimensions:2.5" (W) x 1.5" (H) x 8.3" (D) (6.4 x 3.8 x 21.0 cm)
Shipping Weight:0.4 lbs (0.2 kg).
Batteries:(2) AA alkaline.
Finish:Black.
Learning Capacity:40-100 commands.
Sources Supported:4, with direct selection keys.
System(s) Supported:CAS44.
Type:Programmable learning system remote.




845.1 emitters

Miniature head unobtrusively attaches to your equipment.
Plug-in design installs quickly.
10' (3 m) cable accommodates virtually any component setup.
Shipping Dimensions:4.0" (W) x 0.5" (H) x 6.0" (D) (10.2 x 1.3 x 15.2 cm).
Shipping Weight:0.4 lbs (0.2 kg).
Cable Length:10' (3m).
Connector(s):0.125" (3.5 mm) TS mini plug, tip positive.
Head Dimensions:0.5" (W) x 0.375" (H) x 0.25" (D) (12.7 x 9.6mm x 6.4mm)
Operating Voltage:5-12 VDC
