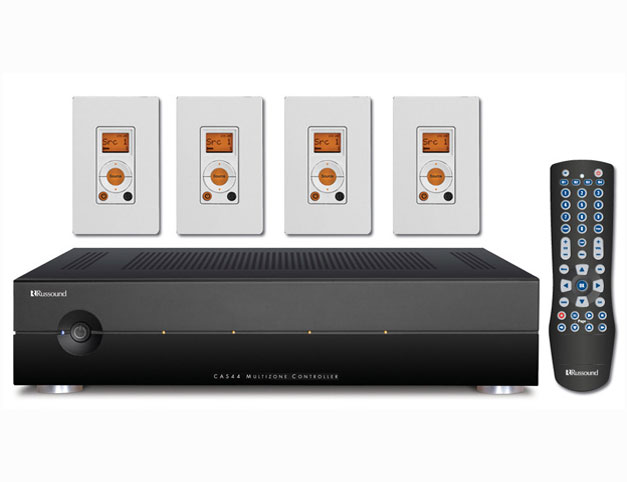

CAS44L Kit

Multi room-Multi zone Controller/Amplifier CAS44, with four(4) KPL Keypads and one(1) CAS Remote control.
Full-featured four-source/four-zone controller, 40 watts per zone, and rack mountable for flexibility and convenience.
Expandable daisy-chain two controllers for eight zones and three keypads per zone for larger home installations.
Includes RS232 port for integration with home automation systems in today's smart homes.
LCD Keypads that show source playing, bass, treble, balance, and volume level.
Sophisticated Decora®-style design, available in five colors.

Belongs to the series: CA Systems

View it in the official brand website

Multi room-Multi zone Controller/Amplifier CAS44

Adjustable bass, treble, balance, loudness and "all off" for total control from keypads.
Distinctive newly designed controller and keypads, available in five Decora colors, for an elegant and practical solution
Shipping Dimensions:19.0" (W) x 9.0" (H) x 26.0" (D) (48.3 x 22.9 x 66.0 cm).
Shipping Weight:17.6 lbs (8.0 kg).
Audio Output(s):4 speaker level (8 ohms).
Audio Source Inputs:4.
Frequency Response:20Hz-20kHz +0/-2.5dB.
Fuse Rating:110V input; F3.0A H 250V US and Canada.
240V input; TF1.25A H 250V Europe.
Input Impedance:50 kohms.
Max Source Audio Input:2.2 Vrms.
Power Supply:VAC 100-120 @3A or 220-240V @1.25A 50-60Hz.
Signal to Noise Ratio:>90.0 dB A-weighted / >88 dB unweighted.
Total Harmonic Distortion:<0.10%.
Trigger Input(s):12VDC.
Trigger Output(s):12VDC 100mA Max.
Watts per channel:20W RMS into 8 ohms.



KPL Keypads

LCD Keypads that show source playing, bass, treble, balance, and volume level.
Works with CAA66 and CAS44 controller amplifiers.
Easy-to-use buttons and visual feedback for simple multiroom control.
Includes programmable source names for personalizing system.
Shipping Dimensions:2.5" (W) x 2.3" (H) x 4.5" (D) (6.4 x 5.7 x 11.4 cm)
CAT-5e Connection:110 punch-down block.
Controls:On/off
Volume up/down
Source select
Audio (bass, treble, balance, turn-on volume, loudness).
Display:5-character LCD panel with volume and status indication.
IR Control:Built-in IR receiver with pass-through.
Keypad Backlight:Amber.
Power Requirement(s):12 VDC 180 mA (supplied through CAT-5 cable).



CAS Remote control

Simply point at your keypad and press to turn on and select your music.
Sleek design fits comfortably in your palm.
Conveniently programmed to instantly work with Russound sources.
Controls most source components from one remote control.
Shipping Dimensions:2.5" (W) x 1.5" (H) x 8.3" (D) (6.4 x 3.8 x 21.0 cm)
Shipping Weight:0.4 lbs (0.2 kg).
Batteries:(2) AA alkaline.
Finish:Black.
Learning Capacity:40-100 commands.
Sources Supported:4, with direct selection keys.
System(s) Supported:CAS44.
Type:Programmable learning system remote.
