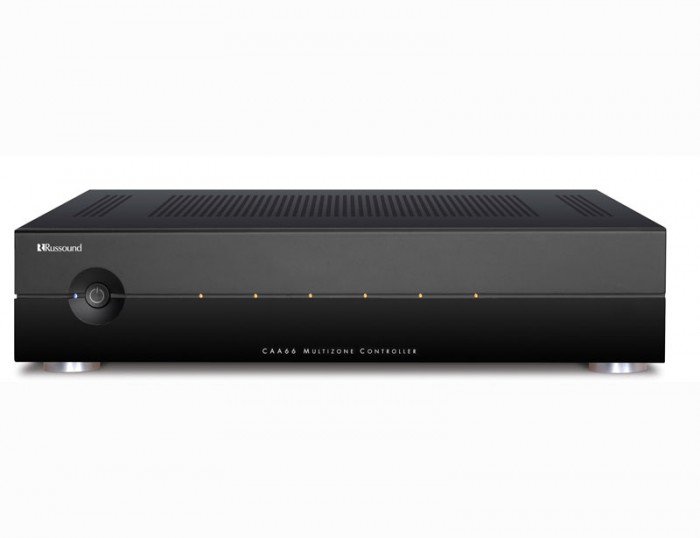

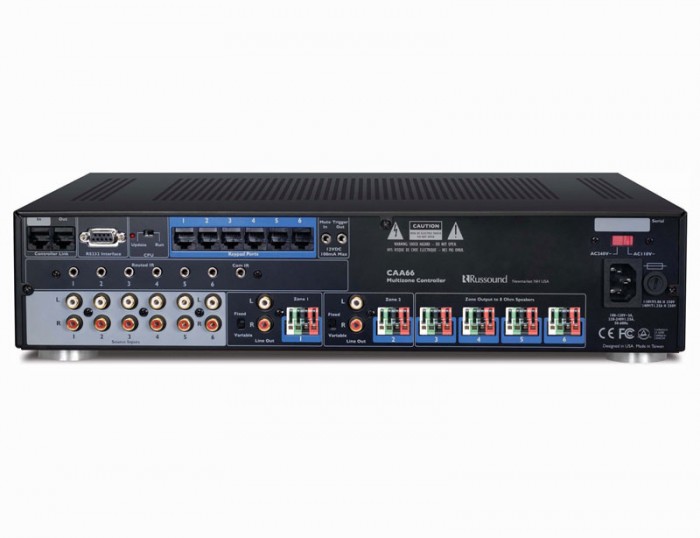

CAA66

Multi room-Multi zone Controller/Amplifier
Six sources, six zones, internal IR library, RS-232, and switchable preamp outputs for flexibility and convenience.
Bass, treble, balance, loudness and "all off" for total control from keypads.
Linkable up to 36 zones to accommodate any size home.

Belongs to the series: CA Systems

View it in the official brand website

Amplifier Channels:12.
Audio Source Inputs:6.
Frequency Response:20 Hz to 20 kHz +0/-2.5 dB.
Fuse Rating:US/Canada: F3.0A H 250V
Europe: TF1.25A H 250V
Input Impedance:50 kilohms.
Line Audio Outputs:Switchable fixed/variable (zones 1 & 2 only), 2.2 Vrms.
Mute Trigger Input:12VDC.
Power Rating:100-120 VAC 3 A or 220-240 VAC 1.25 A, 50-60Hz.
Signal to Noise Ratio:>90 dB A-weighted, >88 dB unweighted.
Speaker Impedance:8 ohms.
Total Harmonic Distortion:<0.10% THD+N from 20 Hz to 20 kHz.
Trigger Output(s):12 VDC 100 mA max.
Watts per channel:20W RMS into 8 ohms.
Zones per Controller:6.
Zones per System:36 maximum.
Shipping Dimensions:19.0" (W) x 9.0" (H) x 26.0" (D) (48.3 x 22.9 x 66.0 cm)
Shipping Weight:17.6 lbs (8.0 kg)
