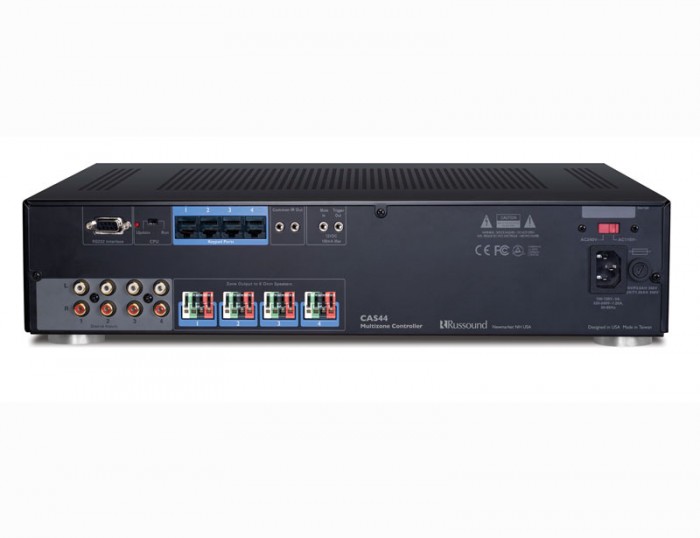

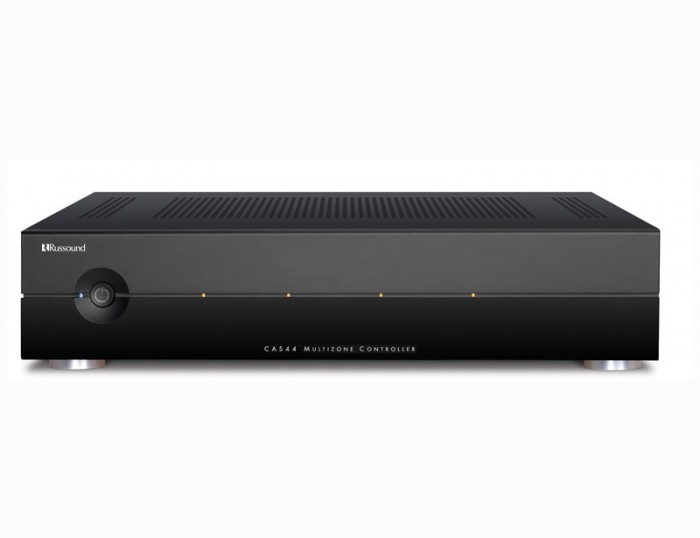

CAS44

Multi room-Multi zone Controller/Amplifier
Full-featured four-source/four-zone controller, 40 watts per zone, and rack mountable for flexibility and convenience.
Expandable daisy-chain two controllers for eight zones and three keypads per zone for larger home installations.
Includes RS232 port for integration with home automation systems in today's smart homes.

Belongs to the series: CA Systems

View it in the official brand website

Adjustable bass, treble, balance, loudness and "all off" for total control from keypads
Distinctive newly designed controller and keypads, available in five Decora colors, for an elegant and practical solution

Audio Output(s):4 speaker level (8 ohms).
Audio Source Inputs:4.
Frequency Response:20Hz-20kHz +0/-2.5dB.
Fuse Rating:110V input; F3.0A H 250V US and Canada.
240V input; TF1.25A H 250V Europe.
Input Impedance:50 kohms.
Max Source Audio Input:2.2 Vrms.
Power Supply:VAC 100-120 @3A or 220-240V @1.25A 50-60Hz.
Signal to Noise Ratio:>90.0 dB A-weighted / >88 dB unweighted.
Total Harmonic Distortion:<0.10%.
Trigger Input(s):12VDC.
Trigger Output(s):12VDC 100mA Max.
Watts per channel:20W RMS into 8 ohms.
Shipping Dimensions:19.0" (W) x 9.0" (H) x 26.0" (D) (48.3 x 22.9 x 66.0 cm).
Shipping Weight:17.6 lbs (8.0 kg).
