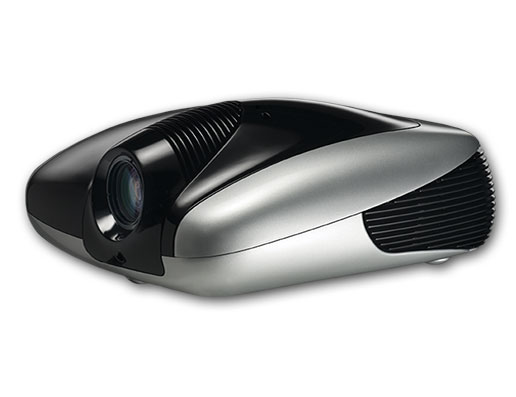

LIGHT ENGINE
DLP® Type 3 Chip DMDs 0,95” 1080p DC4 Resolution
Lens High quality, high resolution improved optics for higher contrast and better black level with motorized zoom and focus adj.
Lamp power consumption 280W dimmable to 230W
Lamp life expectancy(1)  2000 hours typical in standard power mode; 3000 hours in ECO mode Brightness: up to 3000 Ansi Lumens (adjustable)
Contrast ratio (Full ON / OFF) up to 35000:1 with Dynamic BlackTM

INSTALLATION
Throw ratio standard lens 1.75-2.48:1 (type T2) Throw ratio optional lenses
Lens shift (half up picture +50%) and Digital keystone adjustment
Picture size (inches diagonal) 50-300
Aspect ratio 4:3, 16:9 Anamorphic, LetterBox, Panoramic, Pixel to Pixel + 3 custom-user adjustments

ELECTRONICS
Horizontal & vertical scan freq. 15-80kHz/24-100Hz SDTV: PAL (B,G,H,I,M,N,60); SECAM; NTSC autom. selected
HDTV 480p, 720p 50/60, 1080i 50/60, 1080p 24/50/60 + 576p
PC graphic standard VGA, SVGA, XGA, SXGA, UXGA, WUXGA 10 bit Full Channel Signal Board Video Processing

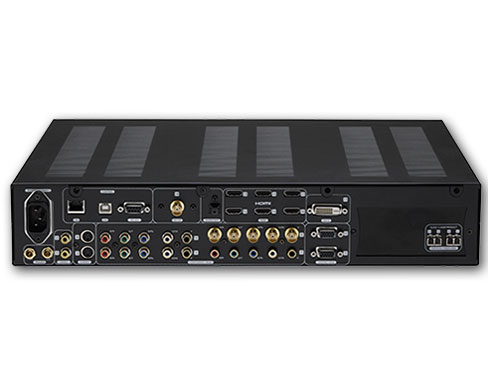

INPUTS/OUTPUTS on HOST
Digital
1 x HD-SDI (BNC)
1 x DVI (DVI–D)
6 x HDMI-HDCP (HDMI) (vers. 1.3 with DeepColor)

Analog
2 x Composite Video (RCA)
2 x S-Video (Mini DIN 4pin)
2 x Graphic RGBVH (VGA-UXGA) (D-sub 15 pin)
3 x Component - Analog YPbPr/RGBs/RGBHV (RCA)
1 x RGBHV progressive analog (BNC)

Control
1 x RS232 (D-sub 9 pin)
1 x USB
1 x Ethernet (RJ45)

Miscellaneous
3 x fiber optics link (LC)
2 x OUT 12V 100mA (via Jack)

GENERAL SPECIFICATIONS
Software control upgradable via RS232, serial interface or USB
Mains voltage range 100-240 +/-10% (48/62 Hz)
Projector Weight 11 Kg. or 24.3 lbs
HOST Weight/Dimensions (WxHxD) 2.5 Kg or 5.5 lbs; 438x90x301 mm (17”x3,5”x11,8”)

Accessories
Supplied Installation and User Manual
AC power cords (2m - 6.6 ft)
Backlit remote control and batteries

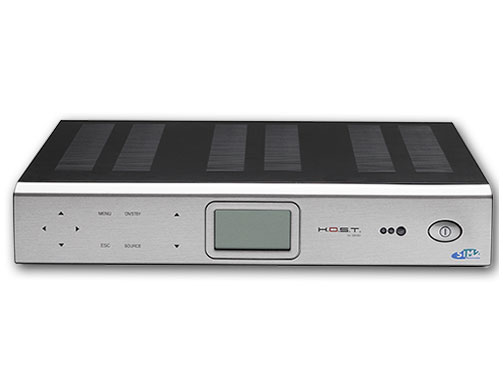

H.O.S.T. Processor
Fibre optics cable (20m)
Live Colors Calibration software
