Projection system
Technology DLP™ 1 chip DMD™ DDR DarkChip™ - 12°
DMD™
Panel Resolution XGA (1024x768)
Aspect Ratio (W:H) 4:3
Optical lens WA 0,737:1
Brightness >950 ANSI lm (100% white field @ 8.000°K)
Uniformity >90% ANSI measurement
Contrast Ratio 1000:1 ANSI "full on/full off"
Number of colors no. 16,777,216 colors
Colour Temperature 6.000°K - 9.000°K adjustable. 3500°K reachable
Lamp 150 W dimmable to 132 W
Average lamp life 150W 6.000 hrs*, 10.000 hrs in 132W configuration – (average time to reach 50% brightness value)

Electronics
Horizontal Frequency 15KHz - 110 KHz
Vertical Frequency 48 Hz - 120 Hz
Analog Bandwidth 170 MHz @ -3dB for graphic signals;
8 MHz @ -2dB for video signals
Graphic Standards from VGA (640x480) to UXGA (1600x1200) with internal scaling
Video Standard automatic decoding PAL, NTSC, SECAM
Internal Magnification from 0,75x to 16x
Graphic Inputs 1 x RGB+HV (or YPrPb or 1 CVBS)on 75 ohm BNC connectors
1 x RGB+HV on HD15 connector
Video Inputs 1 x CVBS + S (in/out) on 75 ohm BNC connectors
1 x S-VIDEO (in/out) on miniDIN4 connectors
ATSC HDTV is also supported on BNC or HD15 or DVI connectors

DVI Input / Output
DVI 1.0 specification Single link up to 165MHz Analog RGBHV (or YPrPb) + Digital RGB;
Active Loop Through for the digital link
Control Interface Serial Interface RS232C or RS485 on DB9 in/out connectors or USB (on request) for control from remote PC;
IR remote control handset (on request)

Electrical Data
Main Power Supply 100 Vac - 240 Vac +/- 10%;
Line Frequency 48 - 62 Hz
Power Consumption Max 200 W
Max Current Absorption @ 120V: 1,5 Arms @ 230V: 0,8 Arms
Max Inrush Current 30 A
Fuse T 3.15A H 5x20mm
Mains Loop-Through @ 120 V: max 5 units; @ 230 V: max 10 units

Mechanical Data

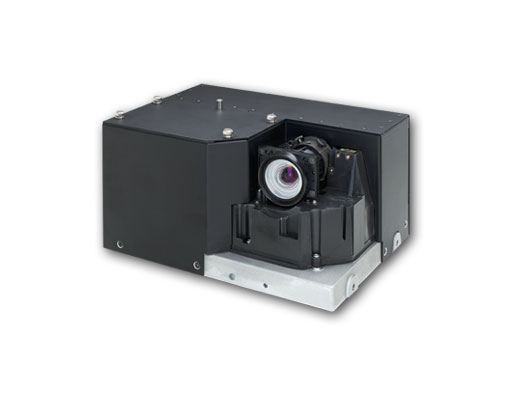

RPU Engine box dimensions (WxHxD) mm 336 x 183 x 228
Total Weight 11 Kg with all accessories
Package Dimensions mm 412x290x412 (LxHxP)

Environmental Data
Exhaust Air 48°C (@ 35°C environment)
Ambient Temperature Operating from 0° to +35°C
Storage and Transportation from -10°C to +55°
Humidity from 10% HR to 90% (without condensation)
Max Altitude Operating 4.000m;
Transportation 11.000m

Installation Position
Standard horizontal (based on the rubber feet);
Vertical (with a vertical projection lens axis).
Allowable tilt around the lamp axis: from 0° to 360
tilt of the lamp axis from -10° to 10°

Safety and regulatory data
Drop Test in compliance with UNI-EN 22247 and 22248
Safety in compliance with EN 60950, UL60950
EMC emission in compliance with EN 55022, EN61000-3-2/3
EMC immunity in compliance with EN 55024, EN61000-4-2/3/4/5/6/8/11, ENV 502047
