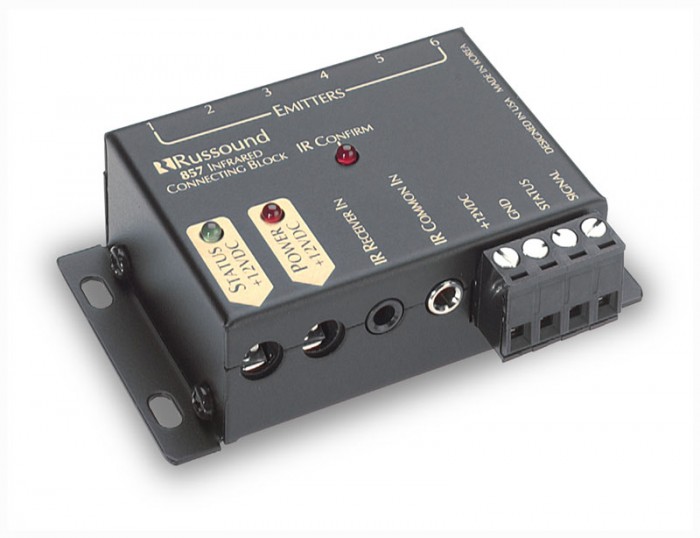

857

The Russound 857 makes it easy to connect infrared accessories together. The hub of an IR repeater system, it receives signals from remotely located infrared receivers and channels them to your source components and other equipment.

The 857 supports up to six components using Russound 845.1 single IR emitters or up to 12 components using Russound 1584.1 dual emitters. It provides a convenient detachable screw connector for wiring multiple IR receivers such as the Russound 858 and 862. It also includes jacks for a Russound 854 tabletop receiver and a common IR signal from a multiroom system.

Usable with Russound 846C and 1201A 12-volt power supplies, the 857 provides an optional Status power circuit for use with products that have status indication. An LED provides visual indication when receiving IR signals.

Belongs to the series: Infrared products

View it in the official brand website

Shipping Dimensions 2.8" (W) x 2.3" (H) x 4.5" (D)
(7.0 x 5.7 x 11.4 cm)
Shipping Weight 0.4 lbs (0.2 kg)
Indicators Red LED for power
Green LED for status power
Blue LED for IR signal confirmation
IR Common Input 1/8" (3.5 mm) TRS jack
Tip = signal, Ring = ground, Sleeve = power
IR Emitter Connectors (6) 1/8" (3.5 mm) TS jacks
Tip = signal, Sleeve = ground
IR Receiver Connector Detachable 4-pole screw terminal block
IR Receiver Input 1/8" (3.5 mm) TRS jack
Tip = signal, Ring = ground, Sleeve = power
Max Wire Size 12 AWG (2.4 mm)
Power Requirement(s) 12 VDC 200 mA to 1 A
(use Russound 846C or 1201A power supply)
Status Power Connector 12 VDC 200 mA
(use Russound 846C power supply)
