IRB-6

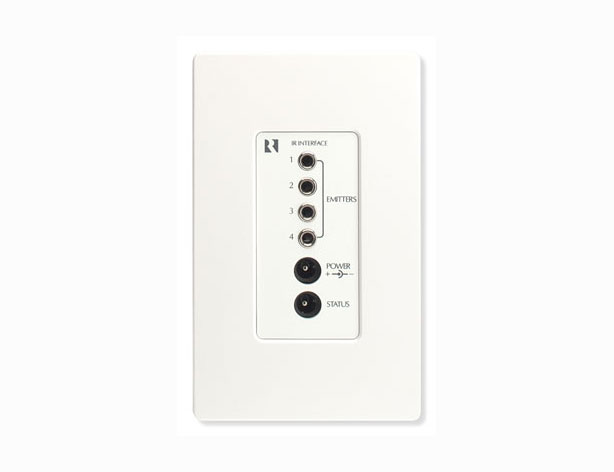

The SaphIR IRB-6 in-wall IR connecting block provides an effective way to cleanly and easily connect IR components. Remote IR receivers connect through the wall to the back of the unit and emitters plug into the front. Additional jacks on the front provide connections for the main and status power supplies.

The IRB-6 can connect up to 12 infrared receivers and allows control of up to 8 infrared-controlled devices when using SaphIR 1584.1 dual emitters.

Belongs to the series: Infrared products

View it in the official brand website

Shipping Dimensions 2.5" (W) x 2.0" (H) x 4.3" (D)
(6.4 x 5.1 x 10.8 cm)
Shipping Weight 0.4 lbs (0.2 kg)
Dimensions in Wall Box 1.438" (W) x 2.625" (H) x 1.625" (D)
(3.7 x 6.7 x 4.1 cm)
IR Emitter Connectors (4) 1/8" (3.5 mm) TS jacks
Tip = signal, Sleeve = ground
IR Receiver Connector Detachable 4-pole screw terminal block
Max Wire Size 12 AWG (2.4 mm)
Power Requirement(s) 12 VDC 200 mA to 1 A
(use Russound 846C or 1201A power supply)
Status Power Connector 12 VDC 200 mA
(use Russound 846C power supply)
