A-VC2

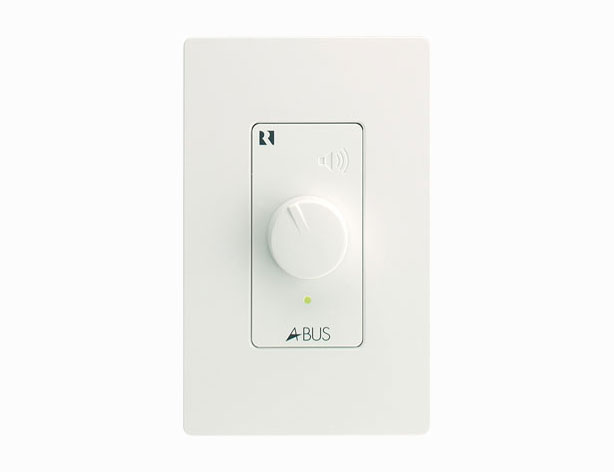

A-VC2 A-BUS Amplified Volume Control.
Easy, uncomplicated control of audio zone.
Smooth, continuous volume adjustment.
Indicator shows power state of source equipment.
Variable line-level output allows connection to an external amplifier or powered subwoofer.

Belongs to the series: A-BUS System

View it in the official brand website

Installer-accessible settings for maximum level and left-right balance.
Shipping Dimensions:3.3" (W) x 2.3" (H) x 4.5" (D) (8.3 x 5.7 x 11.4 cm).
CAT-5e Connection:110 punch-down block.
Controls:Continuously variable rotary volume knob.
Indicators:Source status LED.
Input Impedance:28k ohms minimum, line input.
Installer Adjustments:Potentiometers for volume trim and left-right balance.
Line and Speaker Outputs:Screw terminal connectors.
Max Cable Length:CAT-5,250 ft(76 m) maximum.
Power Requirement(s):24 VDC, 750 mA.
Speaker Impedance:8 ohms per channel.
Status Power Connector:12 VDC, 20 mA minimum.
