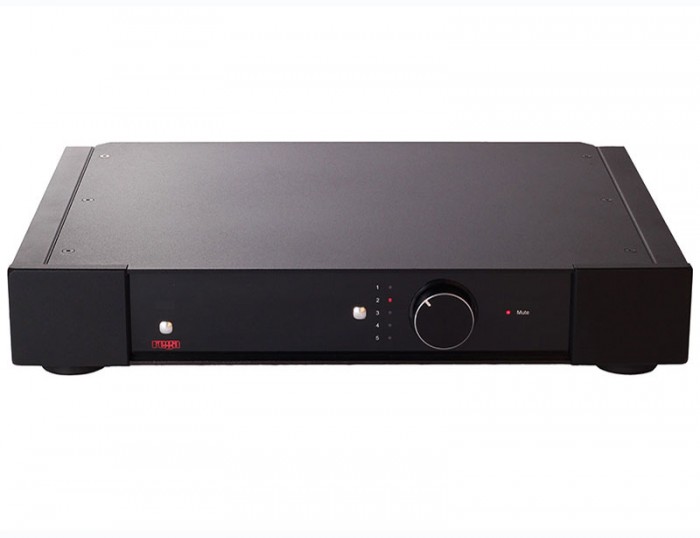

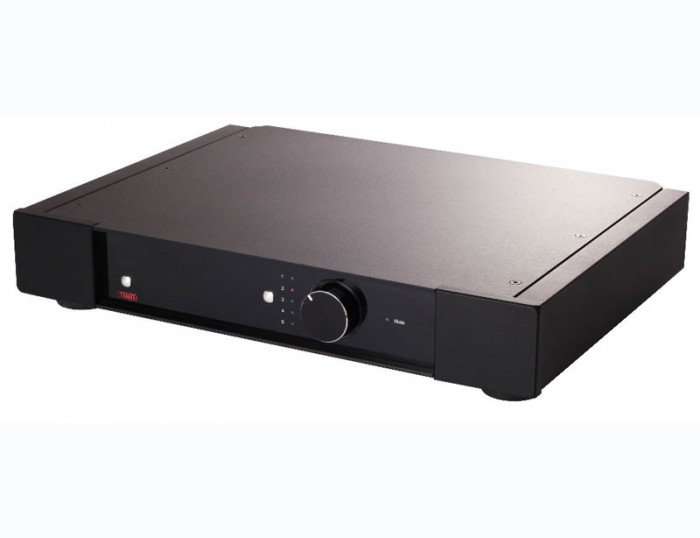

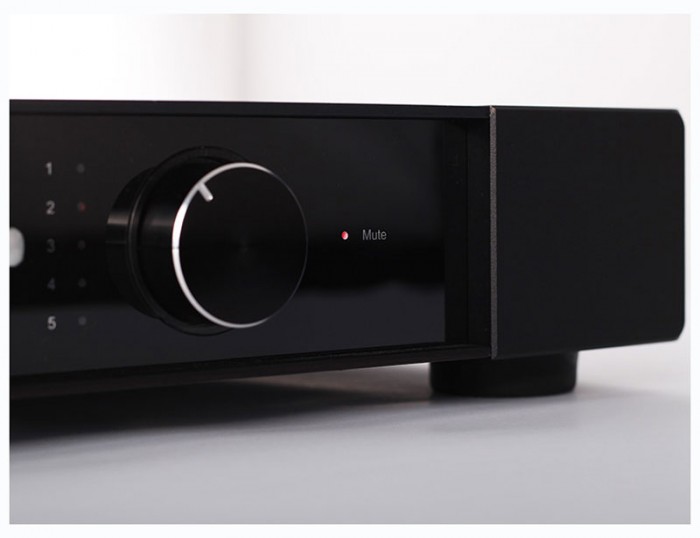

Elex-R

The Elex-R is a sublime blend of the Brio-R design with the power circuits and advanced phono stage of the Elicit-R. Rega’s engineers have achieved the perfect balance of power, control and dynamics, delivering a performance that always puts the music first.

You will find plenty of connectivity options allowing complete flexibility and integration within the rest of the Rega range.

Winner of the WHAT HI-FI 2014 Award for Best stereo amp.

View it in the official brand website

Technical Features
Photos

Rega custom full width case with improved heat dissipation

Combined feedback & passive volume control pre-amp

90 watts per channel into 6 Ohms / 72 watts into 8ohms

High specification integrated phono stage

New multi-lingual user manual

Enhanced power supplies for the driver stage

Hybrid of the Brio-R and Elicit-R design

Dedicated mini remote handset included

Pre-amp out / Record out / 4 line inputs

New custom transformer

Specifications

Power Supply

Voltage: 230v & 115v

Frequency: 60/60Hz

Power Consumption: 250 Watts

230v Fuse: T3.15AL 20mm

115v Fuse: T5AL 20mm

Dimensions W 430mm x D 320mm x H 80mm

Output power

72.5W 8Ω both channels driven - Design centre rating

90W 6Ω both channels driven - Rega speaker impedance rating

113W 4Ω both channels driven

Phono input

Sensitivity (72.5W 8Ω1.7mV (Load 47K in parallel with 220pF)

Maximum input level: 100mV

Line input

Sensitivity (72.5W 8Ω 164mv (Load 30-50K)

Maximum input level: 10v

Tape output

Level: 164mV with rated input

Output impedance: 470

Line output

Level: 625mV with rated input

Output impedance: 600
