DAC-R

The Rega DAC-R is a 16/20/24-bit at 32kHz to 192kHz digital to analogue converter. Incorporating an enhanced version of the Rega designed circuit, the DAC-R offers the highest possible resolution over all inputs including fully asynchronous USB with the addition of remote functionality.

View it in the official brand website

Technical Features
Photos

DAC 2x Wolfson WM8742

Frequency Response (100KΩ load) Filter 1 selected

Low data rate 44.1/48kHz = 10Hz -0.05dB to (44.1K) 20.02kHz (48K) 21.7kHz -0.03dB

Medium data rate 88.2/96kHz = 10Hz -0.05dB to (88.1K) 28.7kHz (96K) 31.2kHz -3dB

High data rate 176.4/192kHz = 10Hz -0.05dB to (176.4K) 44.1kHz (192K) 47.7kHz -3dB

Maximum output level = 2.175V into 100KΩ load

Bit resolution (all inputs) 16 to 24bit

Supported data rates = 32, 44.1, 48, 88.2, 96, 176.4, 192kHz

Total Harmonic Distortion all inputs (24bit 96kHz) = 0.006% @ 1kHz

Signal to Noise Ratio -105dB (relative to maximum output level with a 100Hz to 22kHz bandwidth)

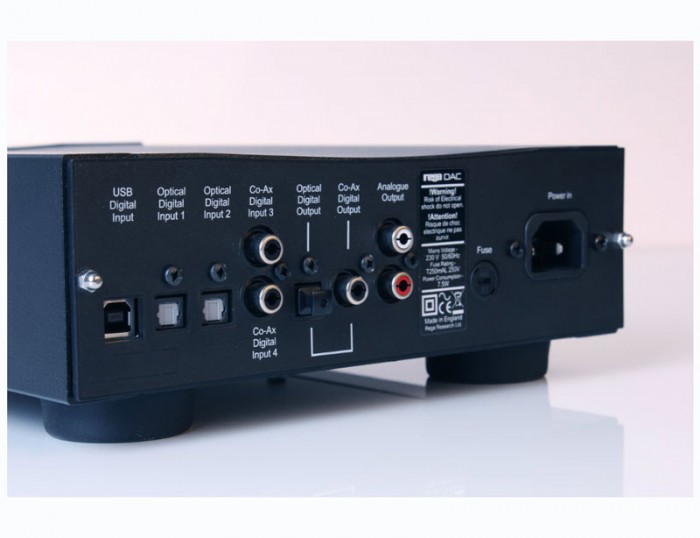

Digital inputs

USB Asynchronous Isolated (24bit 44.1/48/88.2/96/176.4/192kHz)

Input 1 Optical/Toslink (24bit 32/44.1/48/88.2/96/176.4/192kHz)

Input 2 Optical /Toslink (24bit 32/44.1/48/88.2/96/176.4/192kHz)

Input 3 Isolated 75Ω Co-axial (24bit 32/44.1/48/88.2/96/176.4/192kHz)

Input 4 Isolated 75Ω Co-axial (24bit32/44.1/48/88.2/96/176.4/192kHz)

Digital SPDIF outputs (via receiver & PLL)

Optical/Toslink

Isolated 75Ω Co-axial

Power 230v/115v/7.6W

Dimensions W 215mm x D 320mm x H 80mm

Remote NEC system (6E91)

Weight 4.0 Kg
