DSW

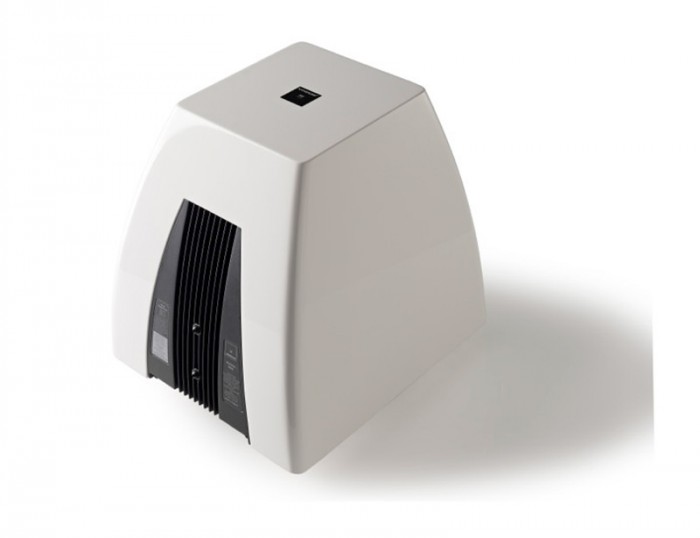

DSW is a powerful and dynamic subwoofer offering exceptional performance in a wide range of Meridian system applications.
Designed to complement Meridian’s Digital Active Loudspeakers, DSW is an extremely powerful unit. It is ideal for use in a complete surround-sound configuration of DSP3200 or DSP3300 loudspeakers, for example, or to complement larger Meridian loudspeakers such as the DSP5200. DSW subwoofers can even be paired with DSP7200 loudspeakers where appropriate.
The unit includes full thermal protection and an advanced, sturdily-constructed, long-throw, high-power 12in drive unit. It is driven by a powerful closed-loop Class D amplifier capable of delivering up to 600W. The driver points downwards and thus removes any tendency to sideways cabinet movement.
Connections
Meridian SpeakerLink in and out (RJ45)
Controls
Channel selector switch for channel(s) 1, 1+2 or 2
Construction
Plywood cabinet with extensive internal structures for maximum strength & rigidity
Driver
1 x 12in long-throw bass driver, facing downwards
Amplifier
Closed-loop Class D Power amplifier rated at 600W peak.
Overall distortion typically <0.02%
Power consumption:
550W max
Indicators
Rear-mounted LED
Dimensions
Height on standard feet (recommended for use on a carpeted floor): 445mm (17.52in); height on standard feet plus rubber shock absorber (recommended for use on a hard floor surface): 450mm (17.72in)
Width at base: 380mm (15in);
Depth at base: 430mm (17in)
Weight
22kg (48.4lb)
