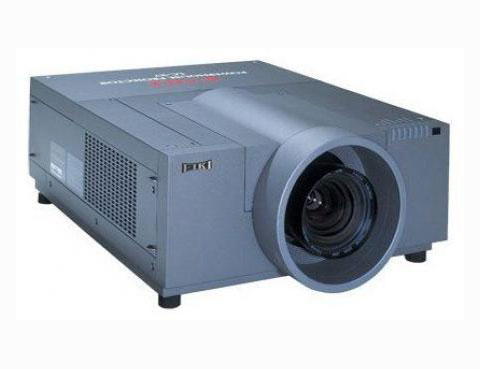

LC-HDT1000

10,000 ANSI Lumens1 bright, with 90% uniformity and a 3000:1 contrast ratio.
Native 2048 x 1080 resolution. Compatible with input resolutions up-to WUXGA & UXGA.
Compatible with Normal and Widescreen video inputs up to 1080p / 2K.
Accepts analog & digital computer and analog & digital video (HDCP) input.
Includes a full set of professional inputs, plus two empty module bays.
Wide range of optional lenses available. Projects images up-to 600” diagonal.
Bi-directional vertical & horizontal power lens shift and keystone correction.
10-bit color processing, for superior color reproduction. Edge Blending.
DVI-D (with HDCP) and HDMI® inputs support digital computer and video.
Durable inorganic LCD panels permit extended use. Built-in Test Pattern.
Self-advancing cartridge air filter reduces maintenance, up-to 10,000 hours use.
Picture-in-Picture, Picture-by-Picture, and Edge Blending functions.
Wireless/wired remote control. RS-232 compatibility. Optional network control.

Belongs to the series: LCD Technology

Technical Features
Photos
Products within the family

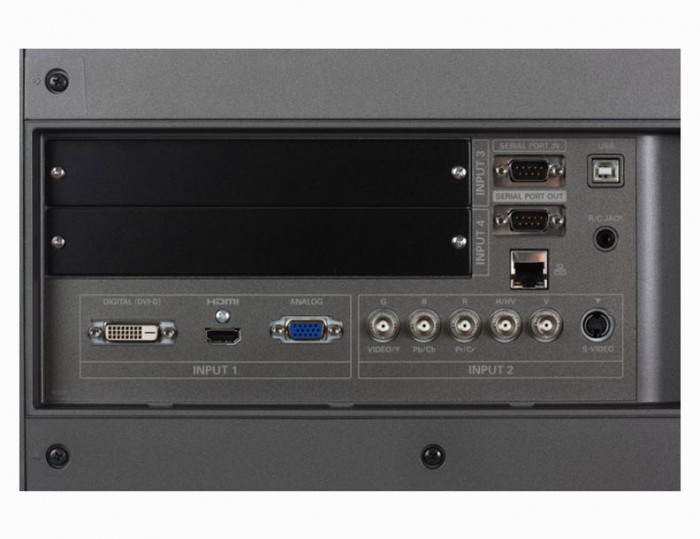

Connections - Auxilary Ports
Mouse, Wired RC, RS-232, Network interface
RS-232 Control Port (In & Out) Dsub9 x 2
Network Interface Port RJ4 5 x 1
Service Port USB-B x 1
Wired RC Port Mini Stereo x 1

Connections - Image Signal Inputs
1a. either Analog Computer - Dsub15 x 1
1b. or Digital / Digital Video (w HDCP) - HDMI x 1
1c. or Digital / Digital Video (w HDCP) - DVI-D x 1
2a. either Analog Computer (RGBHV) - 5BNC, or Component Video (Y, Pb/Cb, PrCr) - 3BNC, or Composite Video - 1BNC
2b. or S-Video - S-Video x 1
3. Unpopulated Module Bay
4. Unpopulated Module Bay

Image Characteristics
Brightness up-to 10,000 ANSI Lumens 1(with AH-22051 lens)
Color Reproduction 10-bit (1.07 billion colors)
Contrast Ratio - Full ON/OFF up-to 3000:1
Illumination Uniformity (corner to center) 90%
Imaging System 1.6 4 in Inorganic PolySilicon active matrix TFT Panels x 3 with proprietary Color Control Device (3LCD+One)
Scanning Frequency Auto: H Sync. 15-120kHz; V Sync. 48-120Hz
Resolution and Aspect Ratio 2K (2048x1080), 17:9
Total Pixels 6,635,520 (2048x1080) x 3

Image Control
Front Elevation up to 2.8° up or down
Horizontal Keystone Correction - Digital up-to 30° Left or Right
Horizontal Lens Shift up-to 10% Left or Right
Image Orientation Normal, Reversed, Inverted
Image Signal Resizing Smart Scaling Technology
Maximum Pitch up-to 360°
Projector Elevation Adjustment (legs) up-to 2.8° Up or Down
Vertical Keystone Correction - Digital Digital: up-to 30° Up or Down
Vertical Lens Shift up-to 50% Up or Down

Lamp
Estimated Lamp Life Hours up-to 3,000 Hours
Lamp 380 Watts NSHA x 2

Supplied Lens
Image Diagonal up-to 600 in (1524 cm)
Image Width up-to 40 ft (12.2 m)
Image Width - Max. 13.5 m
Image Width - Min. 1.83 m
Lens Type Changeable - Does not come with Lens
Throw Distance (Wide~Tele) See specifications of selected lens

Computer Specifications
Computer Input in Pixels 2048x1080~640x480
Computer In 4x3 analog UXGA, SXGA+, SXGA, XGA, SVGA, VGA, MAC
Computer In 4x3 digital SXGA+, SXGA, XGA, SVGA, VGA
Computer In Wide analog WUXGA,WSXGA,WXGA
Computer In Wide digital WSXGA+, WXGA+,WXGA
Pixel Clock up-to 230 MHz

Controls

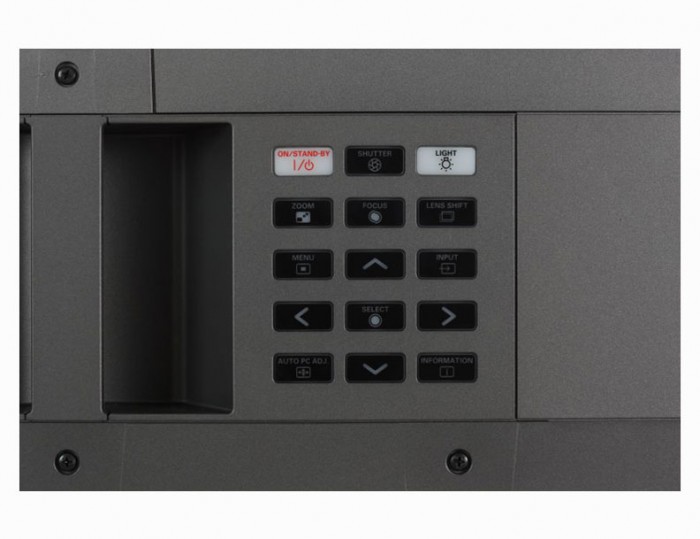

Local Control Full Function
Remote Control - Projector Wireless/Wired x 1

Video Specifications
Video Formats NTSC / PAL / SECAM / NTSC 4.43 / PAL-M&N
Video: Image Sizing Video Scaling Technology
Video In analog 480i/p, 575i/p, 720p, 1035i, 1080i/p
Video In digital 480p, 575p, 720p, 1035i, 1080i/p, 2K

Connections
MiniStereo x 1 R/C Jack
RJ45f LAN (SNMP, PJLink compatible)
USB (series B) x 1 Mouse Control

Physical Specifications
Cabinet Size (HxWxD) 10.5 x 20.8 x 29.8 in (26.8 x 53.0 x 75.5 cm) (excluding legs)
Packaged Size (HxWxD) 21.3 x 33.3 x 37.4 in. (542 x 846 x 951 mm)
Packaged Weight 83.8 lb. (38.0 kg)
Weight 60.9 lbs. (27.6 kg)

Electrical Specifications
Power Management Auto Lamp Shut-Off
Power Requirements 100-240V AC, 50/60 Hz
Power Consumption up-to 1000W
Power Cord approx. 10 ft (3 m), IEC Type C13, Detachable

Environment
Generated Heat up-to 3,582 BTU/hr
Operating Noise - dBA as low as 43 dBA
Operating Temperature 41~104°F (5~40°C)

Safety
Electrical Safety Compliance IEC / UL / cUL
Electromagnetic Compatibility FCC Class A, CE Mark

Security
Kensington® Security Slot Yes

User Maintenance
maintenance Replace Cartridge Air Filter, Change Lamps
