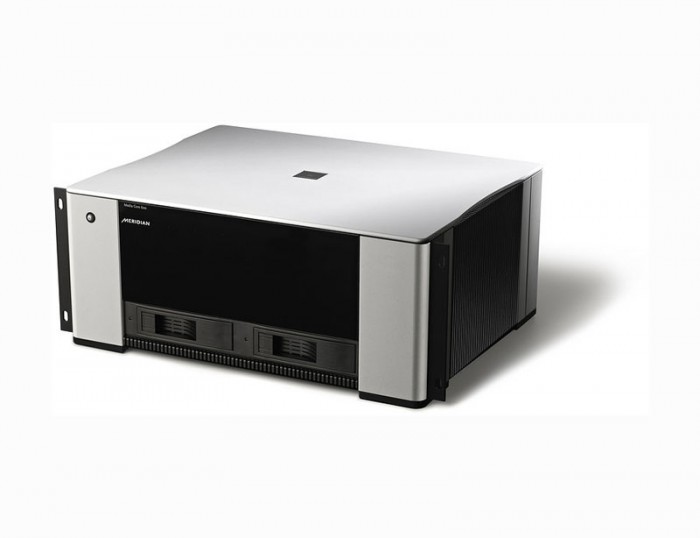

Media Core 600

Powerful multi-zone Meridian Sooloos Digital Media System: just add your choice of controller – iPad, iPhone, computer or other Sooloos controller.
Six built-in audio zones with SpeakerLink, S/PDIF and analogue outputs.
Dual RAID-based hard drives offer enormous storage for many thousands of CD albums in pristine lossless quality.
Integrated audio renderers feature full suite of Meridian’s audio-enhancing DSP technologies, delivering pristine digital and analogue quality to all zones.
Full integration with Meridian and Meridian Sooloos audio systems.
Additional units may be interconnected and synchronised via Meridian House Sync.
Can also be networked to any other Meridian Sooloos product, adding extra storage or zones.

Belongs to the series: Sooloos System

View it in the official brand website

Technical Features
Photos
Products within the family

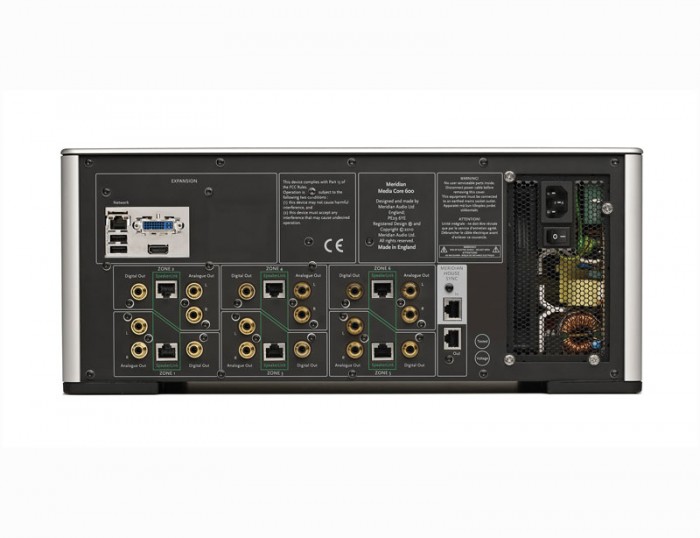

Audio Connections (x6 zones)
1x Meridian SpeakerLink (RJ45)
1x S/PDIF coaxial digital output, RCA type
1 pair Analogue stereo (RCA type) 2v P-P or variable level.

Meridian House Sync
Meridian House Sync In and Out (RJ45) for daisy-chain synchronisation of multiple units

Expansion Panel
1x Ethernet (RJ45) network connection
2x USB expansion connectors
Other sockets in the rear panel expansion section are not used

Drives
Supplied with 2x 2TB drives configured as a RAID 1 system

Controls
Rear panel power switch
Front panel back-lit on/off button

Audio Processing
Ultra-stable clock for lowest possible jitter
“Apodising” upsampling filter for ultimate digital performance
Individual zones may be configured to output high or standard sample rates

Indicators
Power button LED illuminates blue during startup and shudown; white when operating.
Six front-panel LEDs indicating as follows:
1 ERROR On=boot failure, flashing=drive mount failure.
2 TEMP On=product overheating
3 CPU On=CPU is running at greater than 80% usage.
4 RAID1 On=raid marked drive as failed.
5 RAID2 On=raid marked drive as failed.
6 ETHERNET On=Ethernet cable is not detected
If RAID1 and RAID2 LEDs are toggling, one of the drives is being restored to – ie a single new drive has been inserted with an existing working drive.
If ERROR is On and LEDs 2-6 are toggling, the drives are being initialized with a new filesystem. i.e. two new drives have been inserted.

Power
Mains operation, universal voltage power supply

Weight
12.5 kg (27.5 lbs)

Dimensions
440 x 185 x 350mm (18 x 7.3 x 13.8in) not including rear connectors or racking ears (WHD)

Finish
Bead-blasted, anodised, natural silver aluminium.
