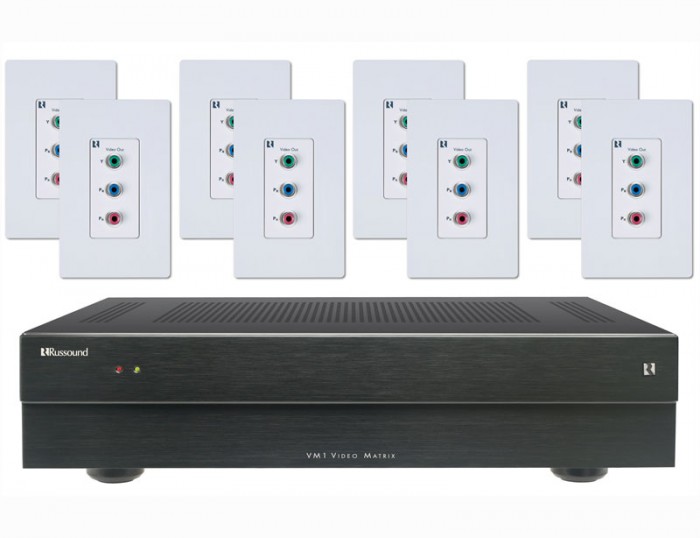

The VM1 Video Matrix works with a multiroom audio system to distribute component video.
It routes video signals to VMR1 receivers in as many as eight zones, each using a single CAT-5e cable.
Active video circuitry prevents signal loss and interference in cable lengths up to 300 feet.
Kit includes 8 VMR1 receivers.

Technical features

Shipping Dimensions      21.0" (W) x 12.0" (H) x 25.0" (D)
(53.3 x 30.5 x 63.5 cm)
Shipping Weight              25.0 lbs (11.3 kg)
Bandwidth              40 MHz
Communication Ports      RJ-45 RNET Link, DB9 RS-232, USB 1.1
Connector(s)              Component Video: 3 RCA per input
Max Cable Length      300 ft (90 m)
Power Requirement(s)      24 VDC 2.5 A (adapter included)
Video Input(s)              Component: 8
Video Resolution      Up to 1080p
Zone Outputs              8
Zone Outputs              8-pole modular RJ-45

The VMR1 Receiver is a single-gang in-wall device that installs in each room where component video
distribution is desired. It receives video signals from the VM1 Video Matrix through a single CAT-5e cable
and provides RCA jacks for connection to the display with a component video cable.

Technical features

Shipping Dimensions      4.5" (W) x 1.5" (H) x 2.0" (D)
(11.4 x 3.8 x 5.1 cm)
Shipping Weight              0.2 lbs (0.1 kg)
Connector(s)              Input: 110 punch-down block
Output:                   3 RCA
Max Cable Length      300 ft (90 m)
Style                      Single-gang Decora®
Video Resolution      Up to 1080p
