ALTX-WIRI 2D

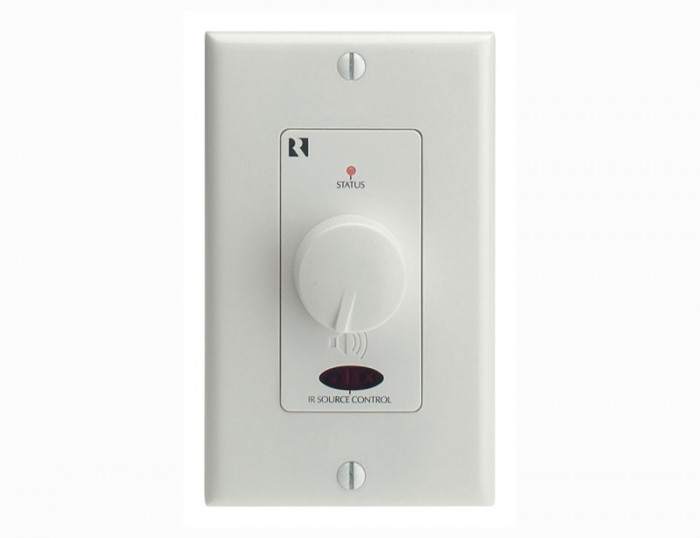

ALTX-WIRI2D 126W Volume Control, Built-In IR Receiver.
Clean design features a knob and a Decora®-style wall plate.
Built-in IR receiver with status indication for infrared control of source equipment.
Selects 11 steps of volume plus off.
Allows impedance matching for up to 16 speaker pairs per system.

Belongs to the series: Volume Controls

View it in the official brand website

Precision autoformers assure long life and superior performance.
Shipping Dimensions:5.5" (W) x 3.5" (H) x 8.0" (D) (14.0 x 8.9 x 20.3 cm)
Connector(s):4-pole screw terminal blocks.
Frequency Range:IR Receive: 36 kHz - 58 kHz
IR Transmit: 40 kHz - 56 kHz
Frequency Response:20 Hz - 20 kHz, +1.0/-0.5 dB at rated power.
Impedance Matching Type:Autoformer.
Max Wire Size:12 AWG (2.4 mm).
Power Handling:126 watts peak, 42 watts RMS continuous per channel.
Power Requirement(s):12 VDC 31 mA max.
Range On axis: 55-80 ft(16.8-24.4 m).
Off Axis: 30 ft (9.1 m).
Speaker Impedance:Min: 4 ohms.
Status Power Connector:12 VDC 3 mA max.
Volume Control:12 steps including Off; total attenuation 48 dB.
