RAVK1

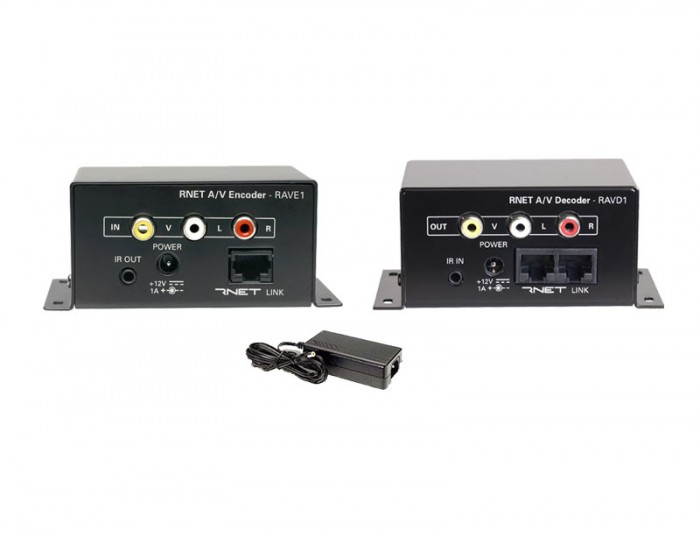

System with one(1)RNET AV Encoder RAVE1 and one(1)RNET AV Decoder RAVD1.
Works with virtually any source and multiroom audio-video system.
Allows either RNET or infrared control of the source.
Uses a single CAT-5 cable between the source and the system.
Compact module mounts on any flat surface

Belongs to the series: Source Equipment

RNET AV Encoder RAVE1

When used with a Russound iBridge or Smart source and an RNET multiroom system, it provides RNET control of the source with data display on the system keypads and touchscreens.
Shipping Dimensions:7.3" (W) x 3.0" (H) x 8.0" (D) (18.4 x 7.6 x 20.3 cm).
Shipping Weight:1.5 lbs (0.7 kg).
Connector(s):RNET: 8-pole RJ-45 jack
(1) composite video RCA jack
(2) left and right audio RCA jacks
IR Emitter Connectors:2-pole 0.125" (3.5 mm) TS jack.
Mounting Method:Surface.
Power Requirement(s):12 VDC 1 A (power supply included).



RNET AV Decoder RAVD1

When used with a Russound iBridge or Smart source and an RNET multiroom system, it provides RNET control of the source with data display on the system keypads and touchscreens.
Shipping Dimensions:7.3" (W) x 3.0" (H) x 8.0" (D) (18.4 x 7.6 x 20.3 cm).
Shipping Weight:1.9 lbs (0.9 kg).
Connector(s):RNET: 8-pole RJ-45 jack
(1) composite video RCA jack
(2) left and right audio RCA jacks
IR Emitter Connectors:2-pole 0.125" (3.5 mm) TS jack.
Mounting Method:Surface.
Power Requirement(s):12 VDC 1 A (power supply included).
