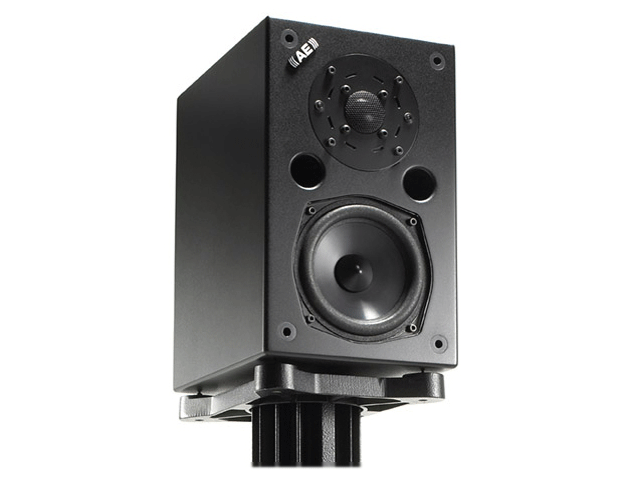

AE 1 Classic

Despite its diminutive size the AE1 Classic offers the soundstage, depth and breadth of much larger loudspeakers thanks to its innovative metal drivers and reflex ported cabinet. The extremely rigid design and high power handling creates a sophisticated blend of clarity, speed and dynamics that once again sets the standard for small box loudspeakers in both the studio and the home.

Belongs to the series: Reference Series

View it in the official brand website

Technical Features
Photos
Products within the family

Bass/Mid Driver: 110mm ceramic sandwich aluminium cone. 32mm edge-wound voice-coil. Magnetically shielded.

Tweeter: 25mm magnesium alloy dome. Magnetically shielded.

Crossover: Symmetrical third order at 3kHz.

Power Handling: Compatible with amplifiers rated at up to 200 Watts into 8 Ohms

Frequency Response: 70Hz - 22kHz ±3dB

Sensitivity: 88dB for 2.83V at 1m

Nominal Impedance: 8 Ohms

Total Harmonic Distortion: Typically less than 0.3%, 200Hz to 20kHz

Power Compression: Less than 1dB for 16dB gain at 250Hz

Dimensions: (H x W x D): 295 x 180 x 255mm

Weight (single speaker): 8kg
