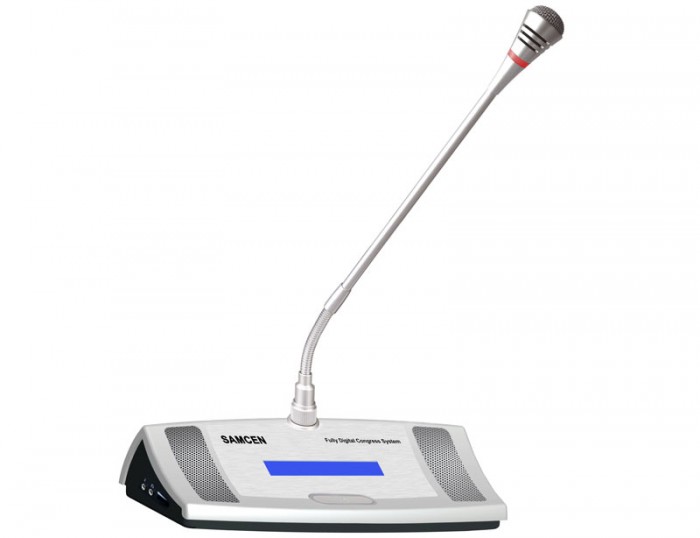

SCS-6090C/D

Novel appearance design and exquisite technical process enable the cabinet rank in the first line of international superior conference system

First choice for large-scale & important conferences, such as International Conferences, Summits, Standing Committee

Each microphone unit connects “hand in hand”, avoid the miscellaneous of circuit, easy to install and maintain. It is also benefit to add/cut down the microphone units

With voice control ability,the voice can turn on microphone, it does not need to press the microphone button by hand

Perfect sound quality, feedback eliminator function. When microphone is turned on, the built-in loudspeaker closes automatically to avoid feedback.

Double microphones input(with clip-on microphone interface)

Gooseneck condenser microphone supports “PnP”(Plug-and-Play), speaking with red ring indicator

Microphones power controllable by main unit, the input voltage is 24V. It’s safety voltage.

LCD display shows congressional information and status of equipment

Working with the control system to realize the function of camera auto-tracking

Chairman unit has priority to speak, it can close/ temporarily muting the delegate unit

Super powers of anti-electromagnetic and mobile phone interference

Microphone rods can be taken down during the recess, easy to maintain

Humanization design. There is different length MIC rods to choose, it is suitable for different height attendances

Ανήκει στη σειρά: Fully Digital Discussion System

Δείτε το προϊόν στην ιστοσελίδα του κατασκευαστή

Power supply  DC24V supplied by the control host

Intercommunication    DIN 8-pole

Power consumption    3W

Loudspeaker power    1.2W

Transducer type          Electret condenser

Directional pattern      Cardioid

SNR    > 80dB

Crosstalk attenuation at 1k Hz           > 80dB

Distortion        <0.10%

Frequency response     60~12KHz

Equivalent noise          ≈20dB SPL

Maximum SPL            105dB(3% threshold)

Sensitivity       -22dBv/Pa.
