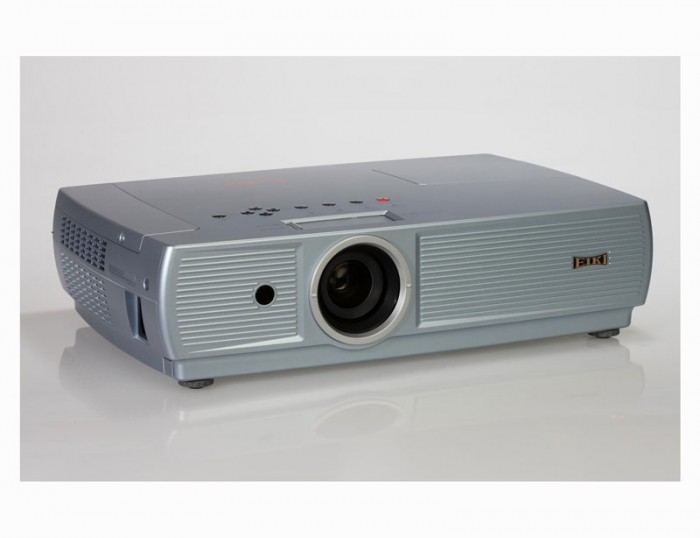

LC-XS25A

2600 ANSI Lumens, 85% uniformity, and 450:1 contrast ratio.
3 panel LCD imaging delivers a rich, color-saturated picture.
XGA resolution. UXGA and WUXGA ~ VGA and MAC compatible.
Wired LAN connection for network monitoring and control.
Top Cabinet Lamp Access. Transparent, permanent lens cover.
Long life lamp: up to 4000 hrs. Long life air filter: up to 5000 hrs.
Closed Caption decoding. Built-in security bar. Auto Setup.
7-Watt audio system. Quiet operation: fan noise as low as 27.5 dBA.
Convenient mid-range 1.2:1 manual zoom and focus lens.
Preset image offset. Vertical digital keystone correction.
Accepts Composite, Component and S-Video in all major standards.
Displays both 4:3 and 16:9 formats. Supports most HDTV resolutions.
Converts Interlace to Progressive scan. 3-2 / 2-2 Pulldown support.
Variable Power Management option. Optional local or remote keylock.
Custom warm-up screen option. Green chalkboard projection mode.
Wireless remote control. Digital Zoom 50 ~ 400%. Turn OFF and Go!

Ανήκει στη σειρά: LCD Technology

Image Characteristics
Brightness up to 2600 ANSI Lumens
Brightness - ANSI Lumens 0
Contrast Ratio 450:1 (Full ON/OFF)
Illumination Uniformity (corner to center) 85%
Imaging System 0.63" PolySilicon active matrix TFT Panels x 3
Scanning Frequency Auto: H Sync. 15-100kHz; V Sync. 50-100Hz
Screen Pixels 1024 x 768 in stripe configuration
Size of Color Palette 16.7 Million
Total Pixels 2,359,296 ((1024 x 768 ) x 3)


Image Control
Anti-Keystone Fixed Image Offset, Ratio (Top:Bottom) 9:1
Image Orientation Normal, Reversed, Inverted
Maximum Pitch up to 10° up or down
Vertical Keystone Correction - Digital Digital: up to 20° up or down


Lamp
Estimated Lamp Life Hours up to 3000 Hours of Use
Lamp 220 Watt UHP


Supplied Lens
Lens Speed f:1.60~1.76
Lens Type Manual Zoom & Focus
Throw Distance - Max. 12.6 m
Throw Distance - Min. 1.4 m
Throw:Width ratio 1.72~2.07:1
Zoom (x) 16
Zoom Ratio - Max:Min: 1.2:1


Computer Specifications
Pixel Clock 140 MHz


Controls
Local Control Full Function
Remote Control - Projector Wireless (Infra Red) x 1


Video Specifications
Video: Color Systems NTSC / PAL / SECAM / NTSC 4.43 / PAL-M&N
Video Formats 4:3 & 16:9
Video: HD Compatibility 480i/p, 575i/p, 720p, 1035i, 1080i
Video: Image Sizing Video Scaling Technology


Connections
Number of Video Channels 0


Physical Specifications
Packaged Weight 6.6 kg (14.5 lbs)
Weight 4.0 kg (8.8 lbs)


Audio Specifications
Amplifier Mono: 7 Watts RMS
Speakers (Built-in) 1 x (3.7 cm)


Electrical Specifications
Power Management Auto Shutdown
Power Requirements 100-240V AC, 50/60Hz
Power Consumption 304 Watts
Power Cord 10' (3M) Type 3, Detachable


Environment
Generated Heat 1037 BTU (261 KC)
Operating Noise - dBA as low as 27.5


Safety
Electrical Safety Compliance UL, cUL, IEC
Electromagnetic Compatibility FCC Class B, CE Mark


Security
Kensington® Security Slot Cable Locking System


User Maintenance
maintenance Clean Air Filter, Replace Lamp
