Formats: CD Audio (CD-DA), CD-R, CD-R/W), DTS-CD (bitstream out only: external DTS decoder required)

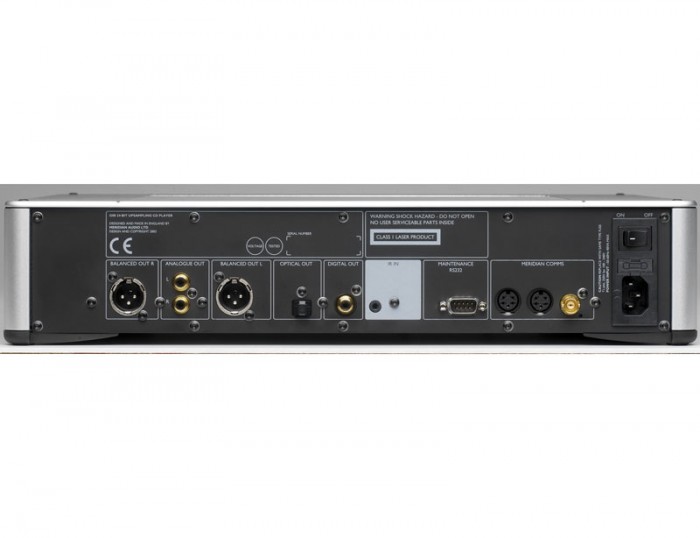

Audio outputs: Analogue: 1 unbalanced on phono, 1 balanced on XLR-3M: 2.3V rms fixed, Class A, 47Ω impedance.
Digital: S/PDIF (IEC60958), coax operating at up to 2 x CD sample rate (88.2kHz), 24-bit, and Toslink optical.

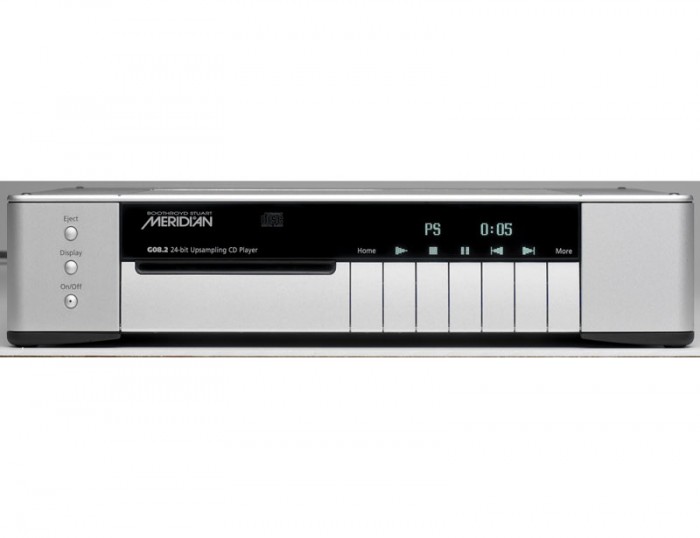

Controls: Front-panel soft keys include Play, Stop, Pause, Previous, Next, etc. Buttons for On/Off, Open, Display. Full remote control of all features via MSR+.
Comms: Full RS232 control and status enables custom integration or automation. Meridian Comms (2 x DIN plus BNC)
THD: Better than –96dBFS
Noise: Better than –96dBFS
Mechanism: Triple-beam laser, multi-speed CD/DVD-ROM transport
Panel Display: Multi-character dot-matrix graphic Vacuum Fluorescent Display (VFD)
Construction: Meridian black or silver finish in metal & glass
Dimensions: Width: 440mm (17.32in); Depth: 350mm (13.78in) plus connectors; Height: 90mm (3.54in)
Rack Mounting: Kit available from Meridian authorized dealers
Weight: 8.5 kg (18.7 lbs)
Power: Universal supply 100–240V, 50–60Hz, 25W
